CNC Cutting Machine Accessories
Enhance your CNC cutting performance with professional accessories. We provide precision torch height controllers, triple-torch beveling units, and intelligent nesting software to optimize your metal plate processing.

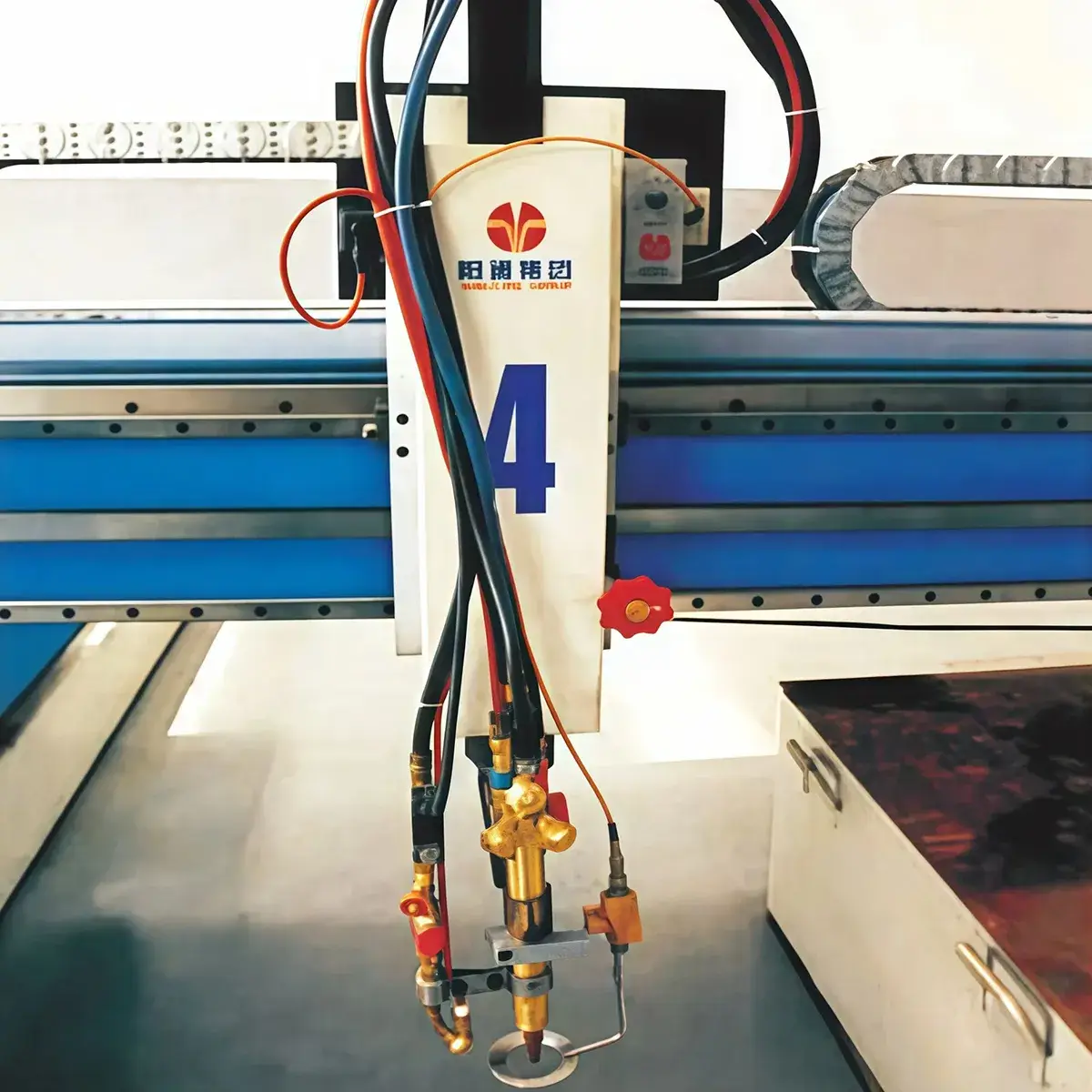

Automatic torch height controller can automatically maintain the optimal distance between the torch and the steel plate to ensure cutting precision and prevent collisions.
- High Precision & Sensitivity: Maintains a height accuracy of ±0.2mm with a response sensitivity of 20–30mm/s.
- Reliable Control: Equipped with a central controller utilizing integrated surface-mount technology for superior reliability and anti-interference performance.
- Safe Auto-Ignition: The ignition system uses a low-voltage AC24V power supply, ensuring high success rates and operator safety.

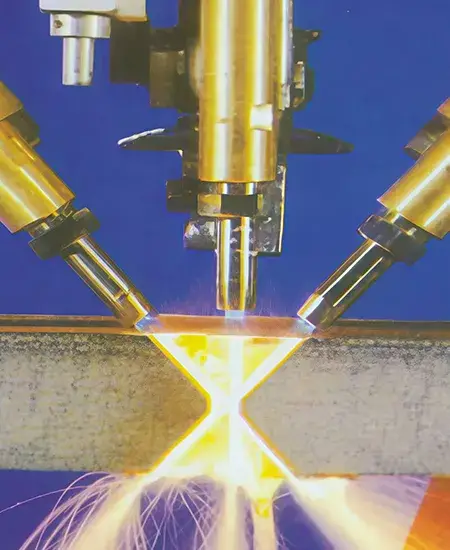

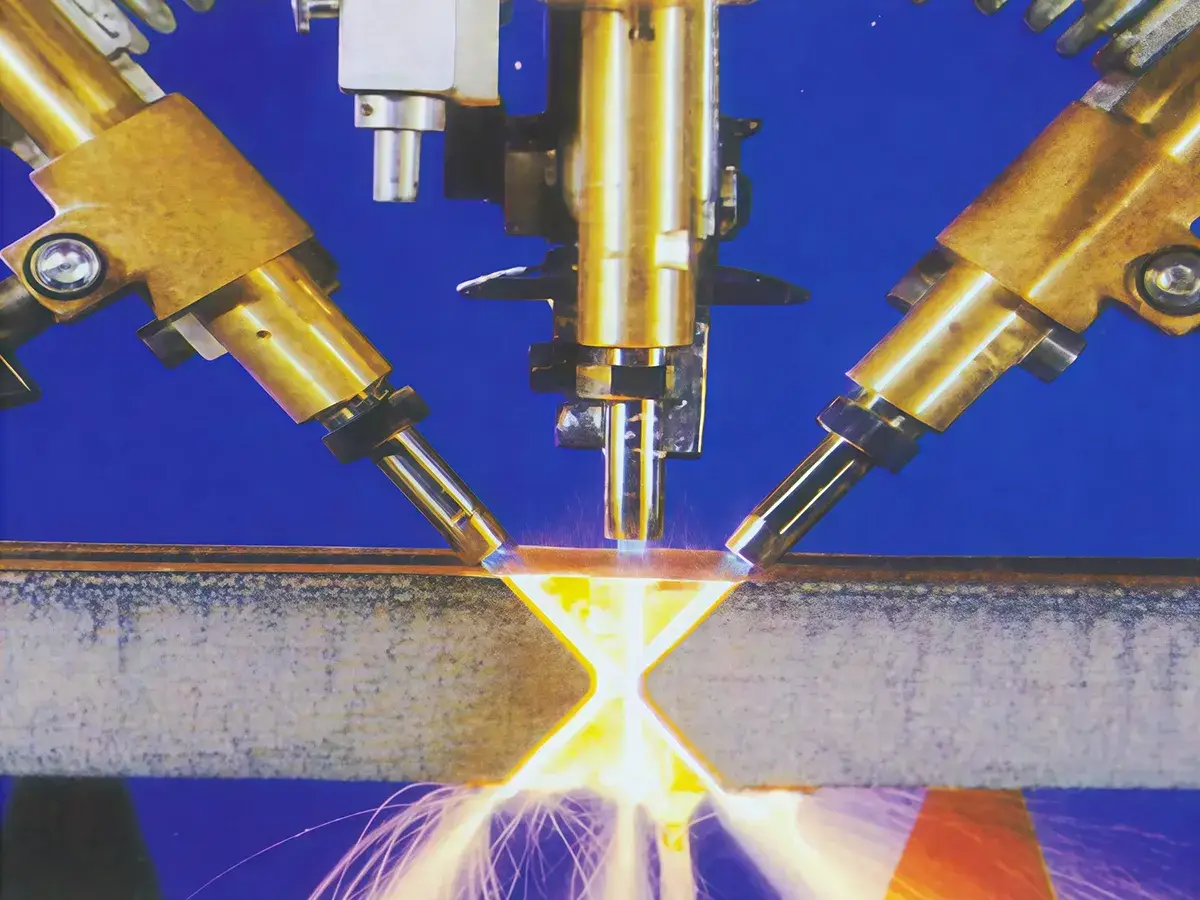

Triple oxyfuel cutting torch performs simultaneous cutting of V, Y, X, and K-type bevels in a single pass to significantly improve welding preparation efficiency.
- Versatile Beveling: Specifically designed for simultaneous cutting of linear V, Y, X, and K-type bevels.
- Wide Adjustment Range: Features an angle adjustment range of ±45° and is suitable for plate thicknesses from 16 to 50mm.
- High Accuracy: Delivers an angle accuracy of ±5°. For K-type bevels, it maintains a minimum blunt side of 3mm with a dimensional tolerance of ±1mm (requires mechanical height adjustment).
- Export Proven: Our CNC cutting machines exported to North America are regularly configured with these mechanical auto-tracking triple torches.

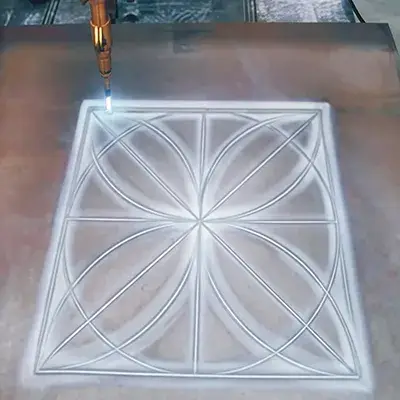

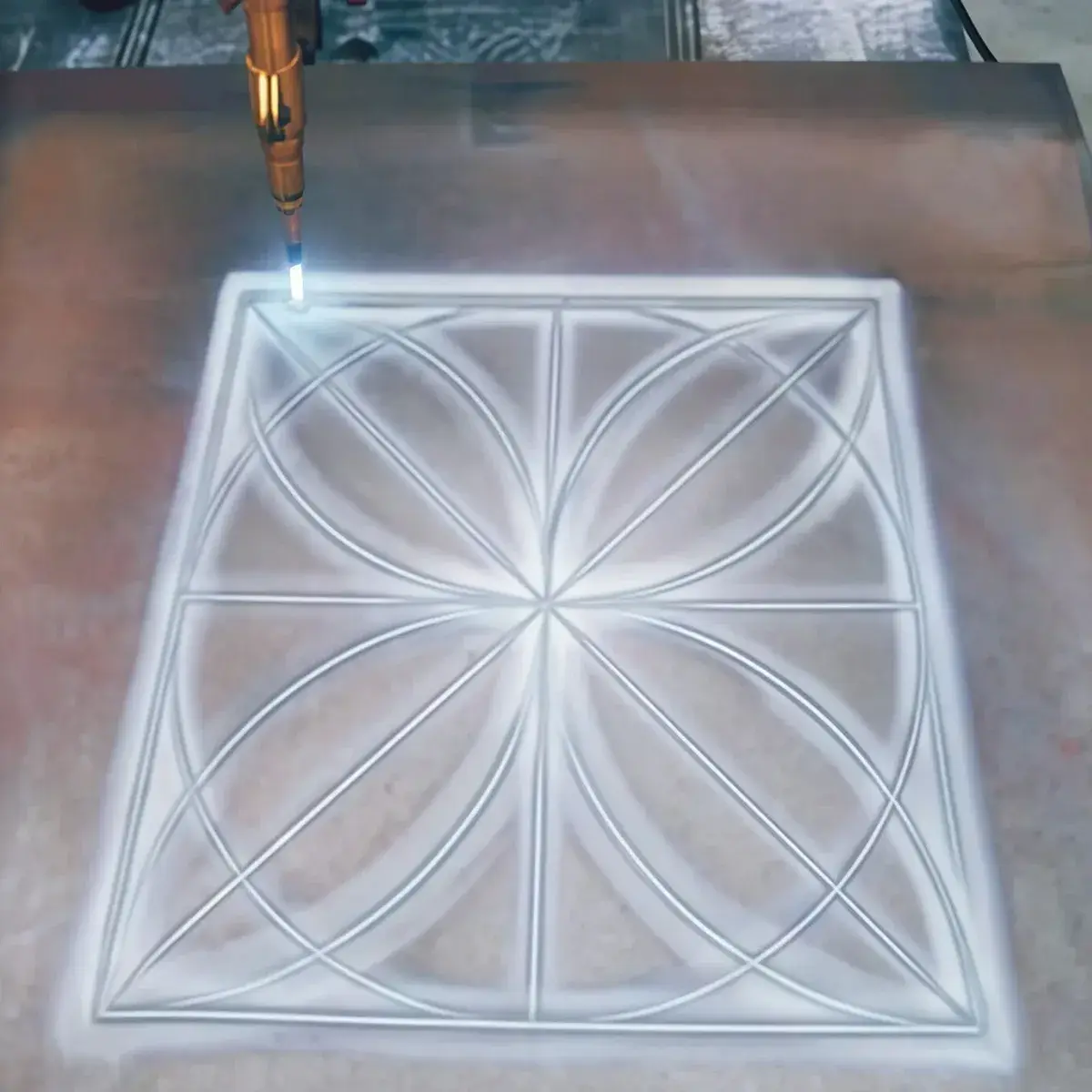

Powder marking unit creates high-visibility layout lines and part identification marks on the steel plate surface before the cutting process.
- Pre-Cutting Layout: Used for precision powder-spray marking on workpieces before the actual cutting starts.
- Fine Marking: Produces a consistent line width of 0.6 to 1.0mm.
- Permanence: The sprayed marks are highly durable and remain visible throughout the fabrication process.

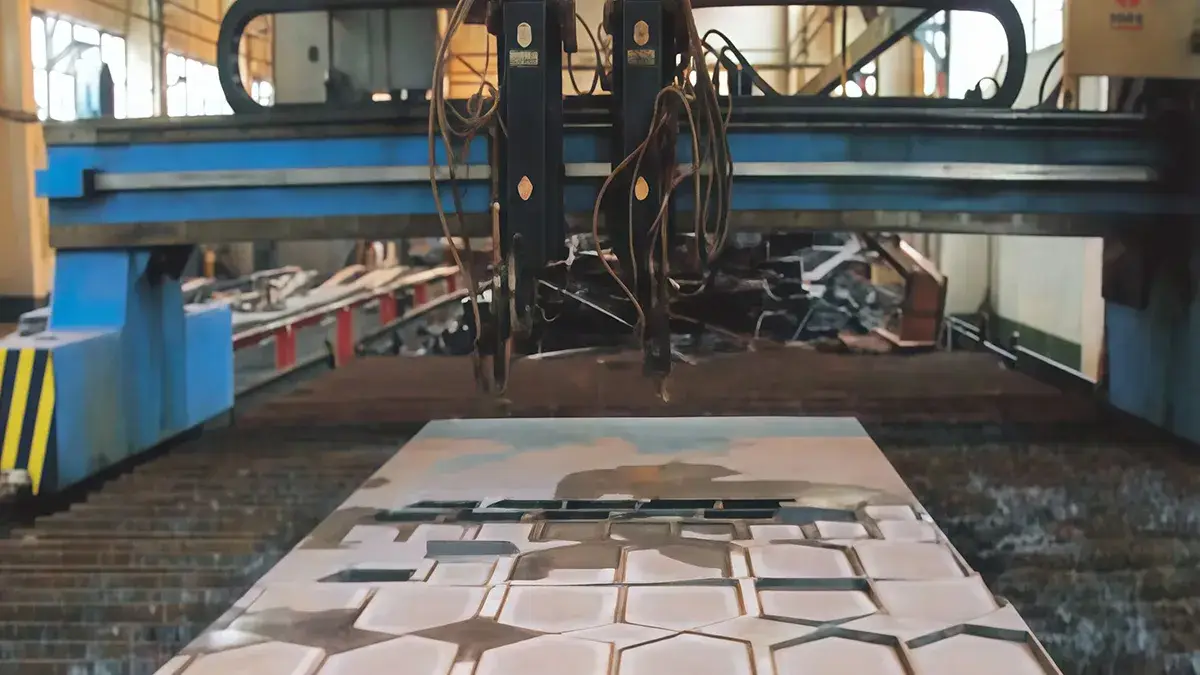

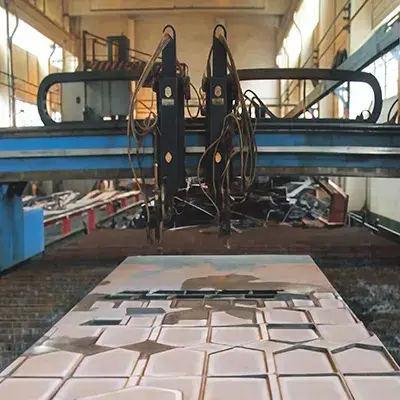

Automatic nesting software optimizes part layout and cutting paths through advanced algorithms to maximize material utilization and simplify NC programming.
- All-in-One Solution: Seamlessly integrates drawing, path generation, verification, and nesting functions into one platform.
- Universal Compatibility: Directly imports DXF, DWG, or CAM files generated by common CAD software.
- Efficiency: Converts any 2D graphic into optimized NC code. Supports both automatic and manual nesting to significantly reduce material waste.

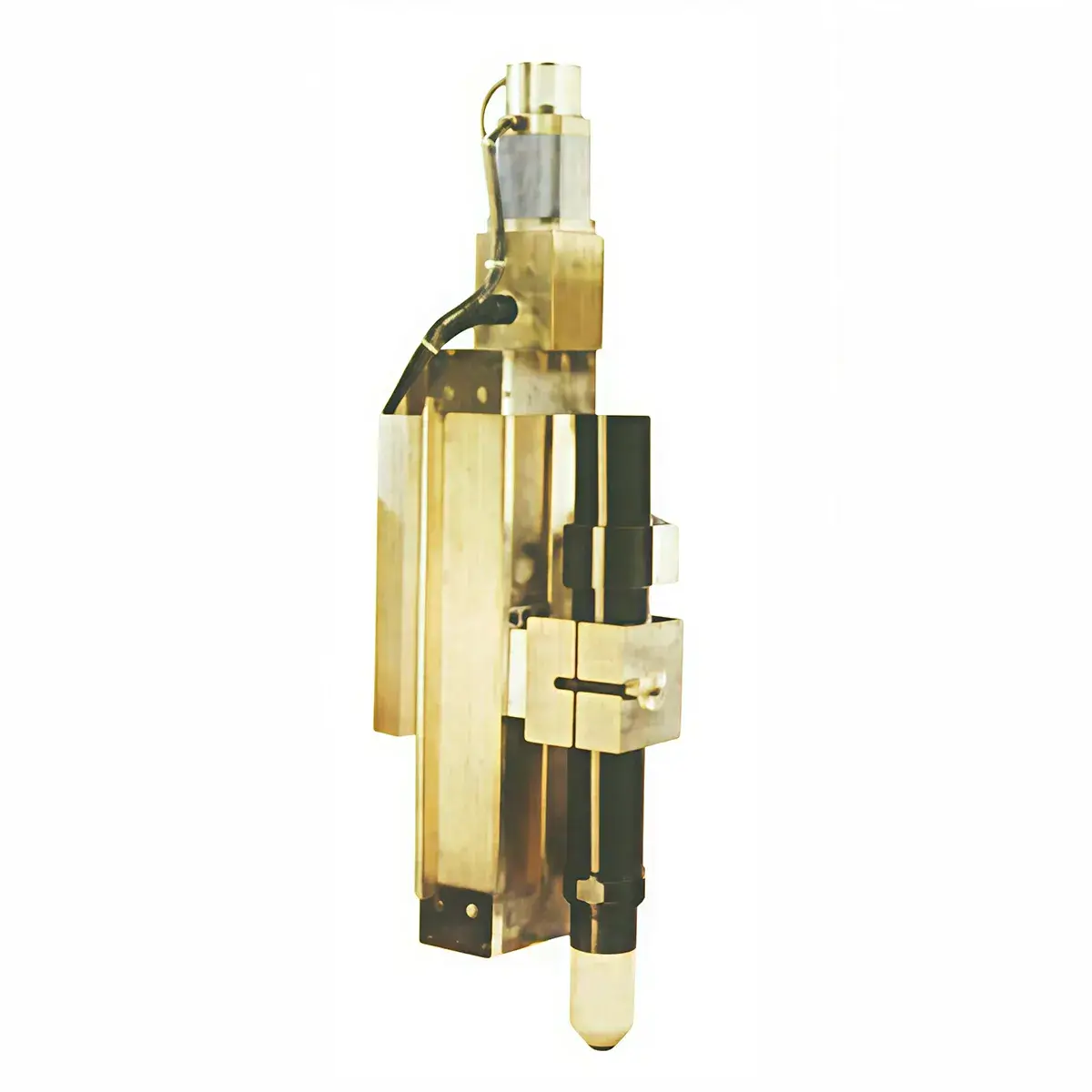

Arc voltage height control (AVHC) detects plasma arc voltage in real-time to lock the cutting height, preventing torch damage caused by plate deformation.
- Precision Performance: High-accuracy control of ±1–2V with exceptional sensitivity and anti-interference capabilities.
- Intelligent Logic: Includes Kerf Cross Control to maintain stable height even when the torch crosses previously cut lines.
- Consumable Compensation: Automatically increases the set arc voltage as electrodes/nozzles wear down, preventing the torch from colliding with the workpiece.
- Advanced Hardware: Utilizes a central controller with high-reliability integrated circuitry.
