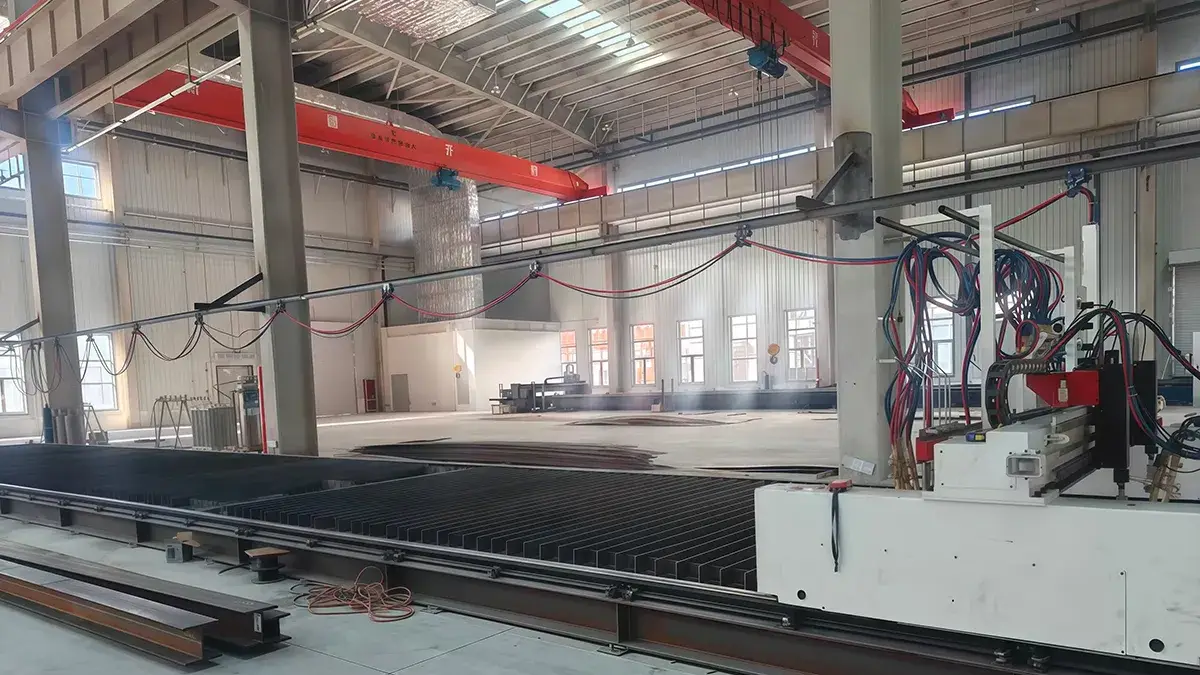

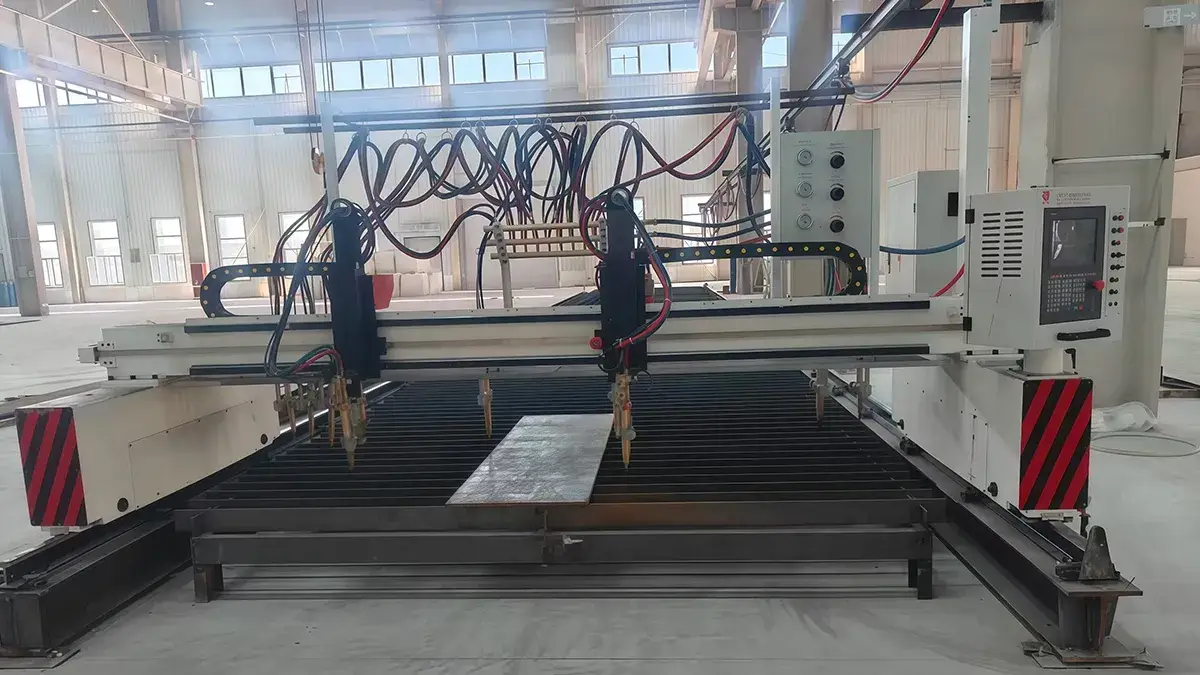

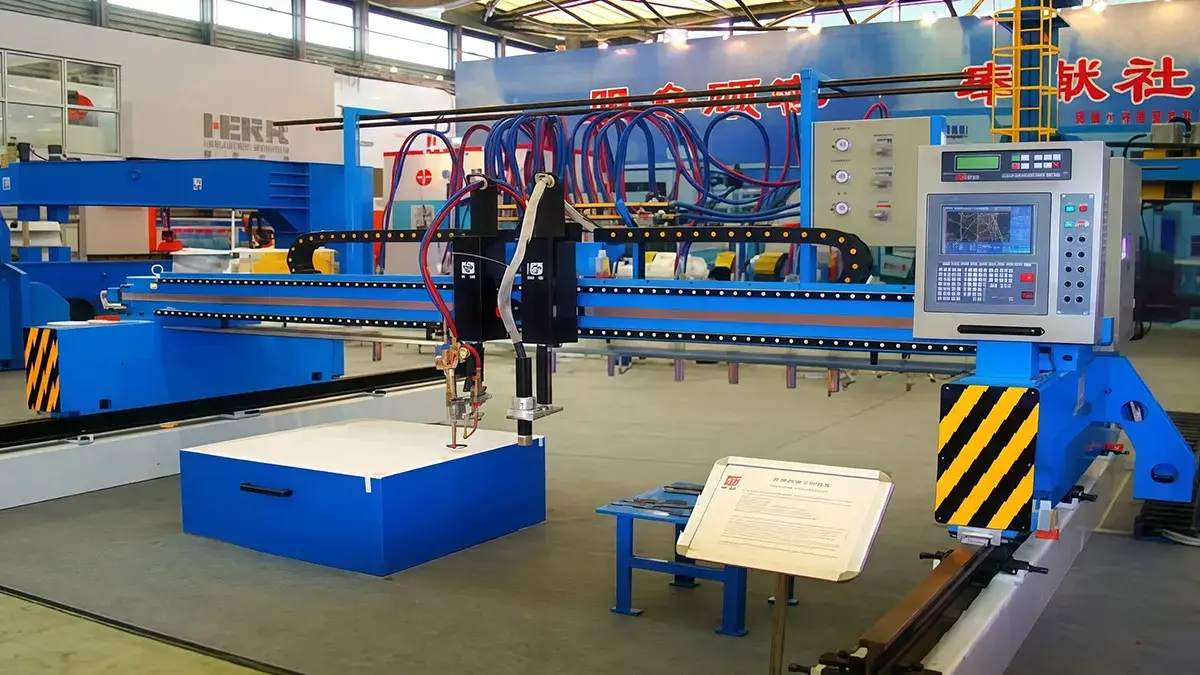

CNC Oxyfuel Cutting Machine (Flame Cutting)
Watch Videos

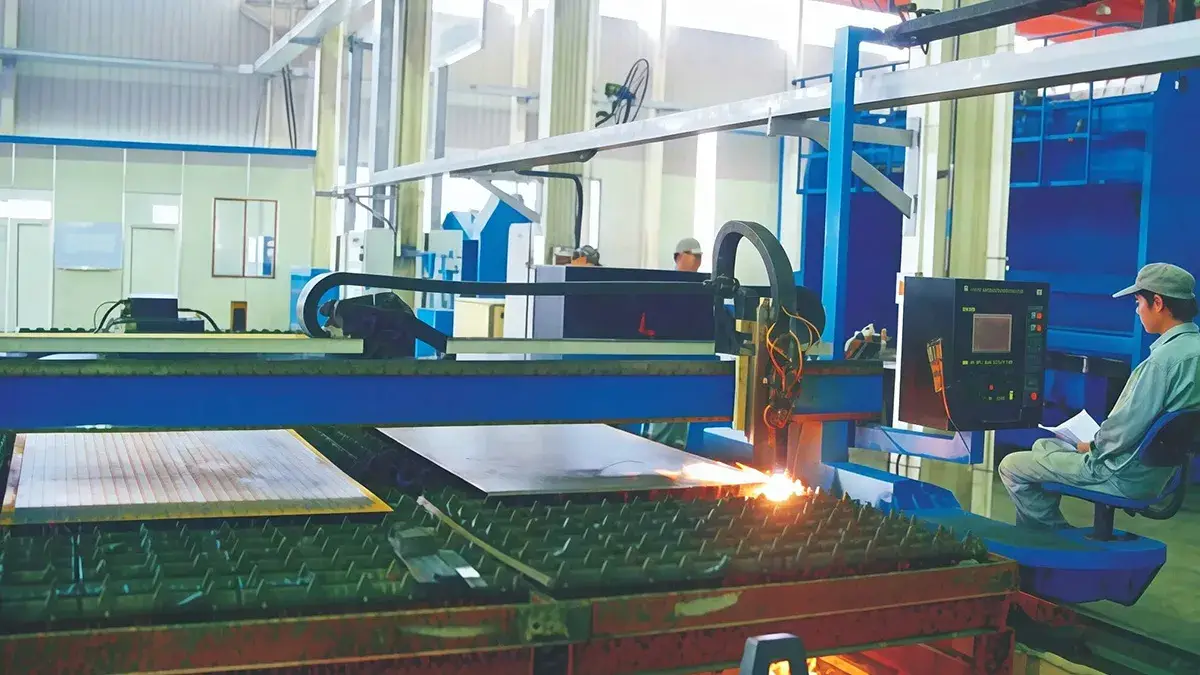

Our CNC oxyfuel cutting machines are developed through years of engineering refinement to provide a stable and high-precision solution for heavy-duty steel plate processing. The CNC flame cutting system supports both straight-line strip cutting and complex shape profiling.

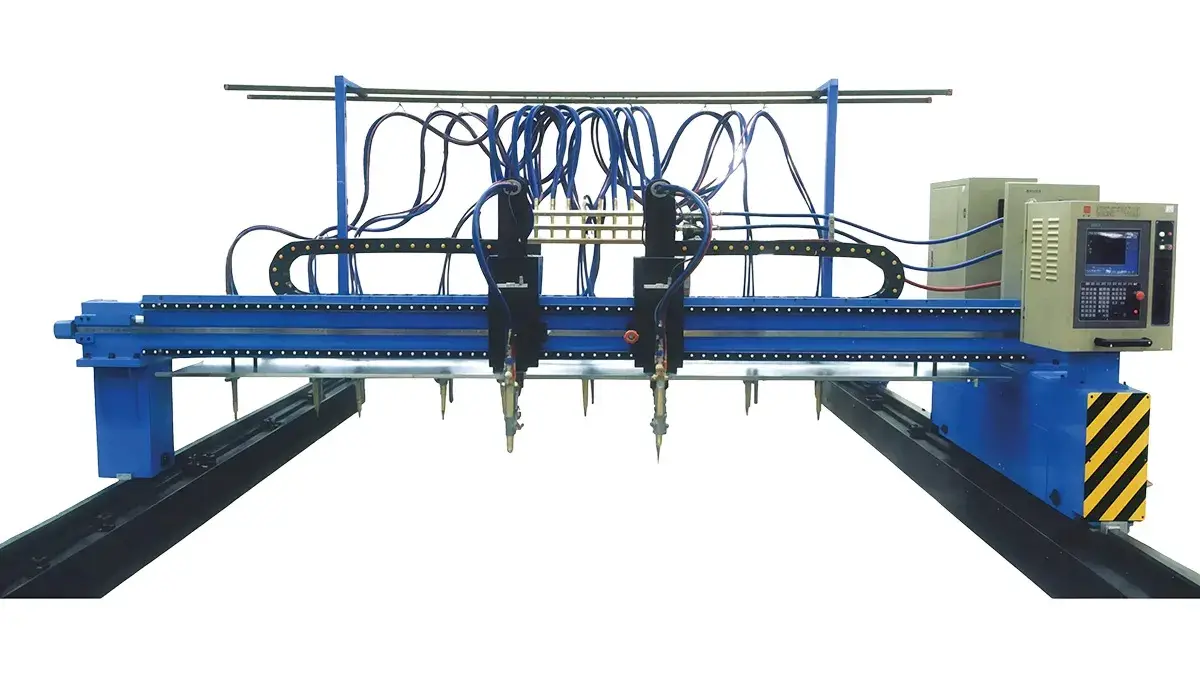

The precision CNC cutter features a welded structural steel frame and dual-axis linear guides, delivering superior structural stability, user-friendly operation, drive precision, and build quality. All performance metrics and technical specifications fully meet or exceed current industry standards.
Specifications
| Model | |
|
| Drive System | Single-side drive (24kg/m rail) | Dual-side drive (38kg/m heavy rail) |
| Rail Span (m) | 3-4 | 3-10 |
| Effective Cutting Width (m) | 2.2-3.2 | 2.2-9.2 |

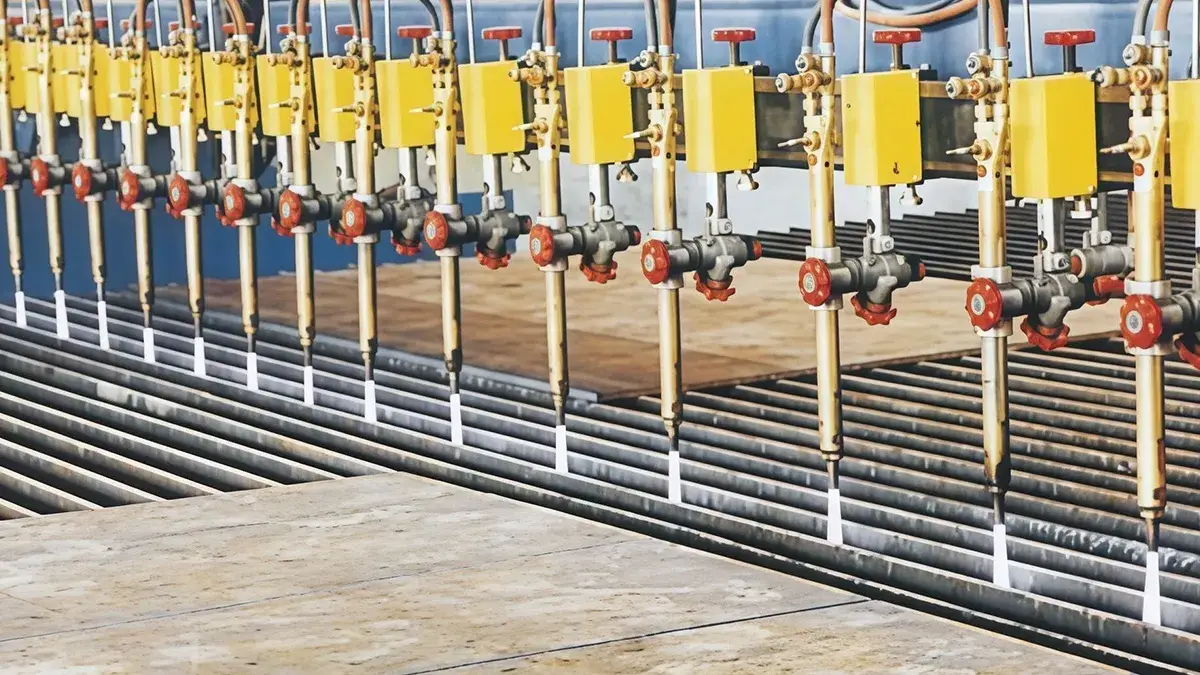

| Strip Cutting Width (mm) | 80-3200 | 80-9200 |
| Torch Lift Stroke (mm) | 150 | |
| Cutting Speed (mm/min) | 50-1000 (adjustable by process) | |
| Rapid Return Speed (mm/min) | 6000 | |
| Cutting Thickness Range (mm) | 6–100 (Single torch); Piercing ≤80 | |
| Applicable Material | Mild Steel (MS) | |
| Input Power | Single-phase AC220V,50HZ,2KVA | |
| Intersection Deviation (mm) | ≤0.5 (Standardized 800×800 mm test pattern) | |
| Diagonal Error (mm) | ≤0.5(300×300 square test) | |
Videos
-
Watch Videos

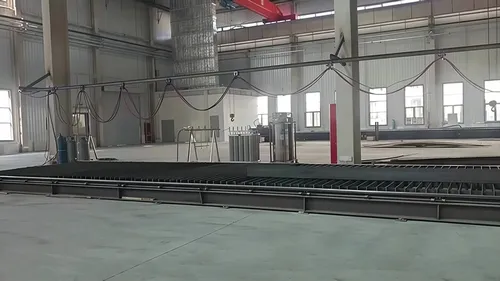

CNC Oxyfuel Cutting Machine -
Watch Videos

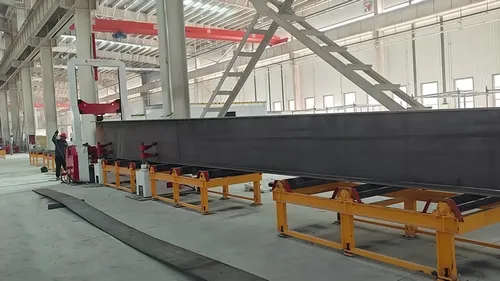

Steel H-Beam Assembly Machine
