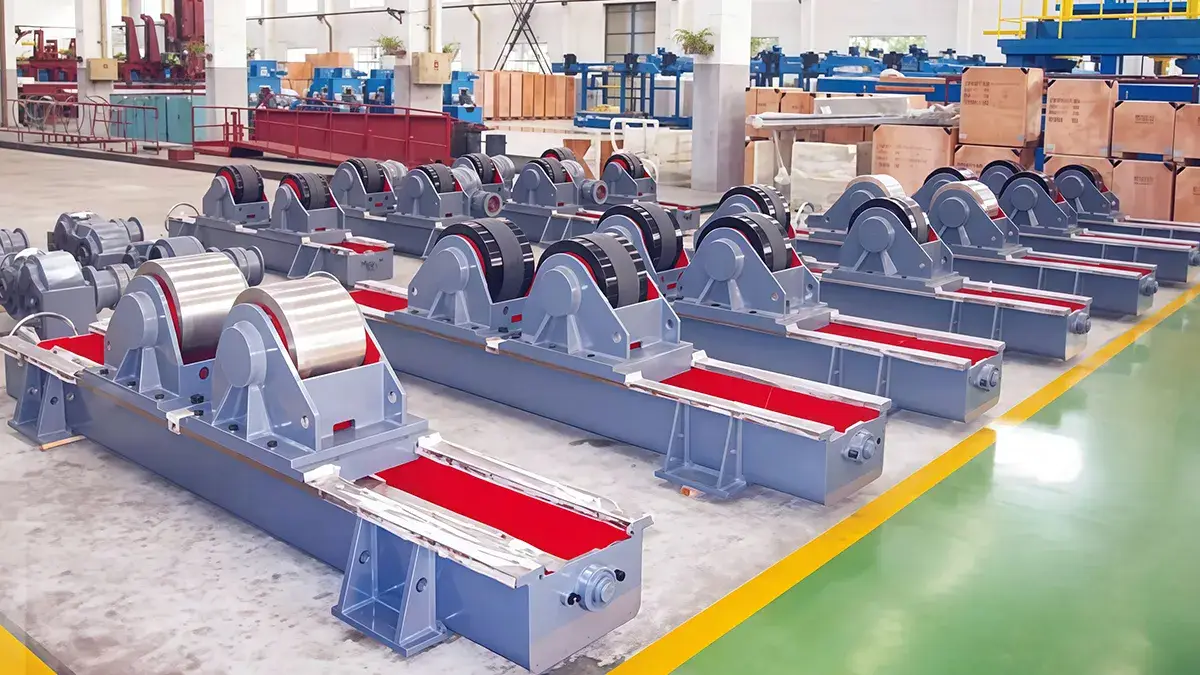

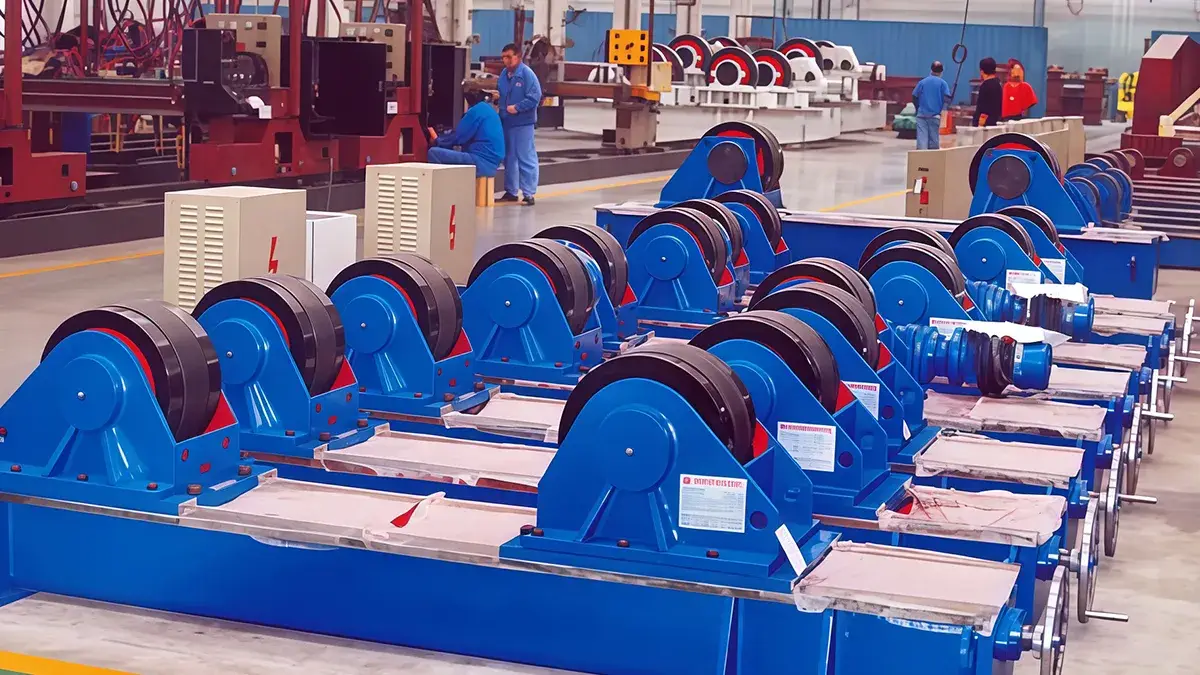

Adjustable Turning Rolls
Adjustable turning rolls hold and rotate cylindrical workpieces for welding, grinding, lining, or assembly. The turning rollers can be adjusted with screws or special mechanisms to be suitable for different sizes, ensuring the workpieces stay centered and rotate smoothly while operators work. Operators use these turning rolls to ensure stable rotation, proper alignment, and easier access to all sides of the part. Available with steel, rubber, or polyurethane rollers, they can also be customized for specific production needs, providing safe and efficient handling of heavy or long components.
Specifications
| Model | ||||||||
| Max. Load (t) | 2 | 5 | 10 | 20 | 40 | 60 | 80 | |
| Working Range (mm) | ⌀180-2100 | ⌀250-3000 | ⌀320-3800 | ⌀400-4200 | ⌀600-4500 | ⌀700-5000 | ⌀700-5500 | |
| Roller Diameter×Width (mm) | Rubber roller | ⌀200×80 | ⌀250×100 | ⌀300×120 | ⌀350×120 | ⌀400×120 | ⌀450×120 | ⌀500×120 |
| Metal roller | ⌀190×16 | ⌀240×20 | ⌀290×38 | ⌀340×45 | ⌀390×60 | ⌀440×70 | ⌀494×80 | |
| Motor Power (kW) | 0.18×2 | 0.37×2 | 0.55×2 | 1.1×2 | 1.5×2 | 1.5×2 | 2.2×2 | |
| Roller Linear Speed (m/h) | 6–60 m/h, VFD (Variable Frequency Drive, stepless adjustment) | |||||||
