Self-Aligning Turning Rolls

Self-Aligning Turning Rolls

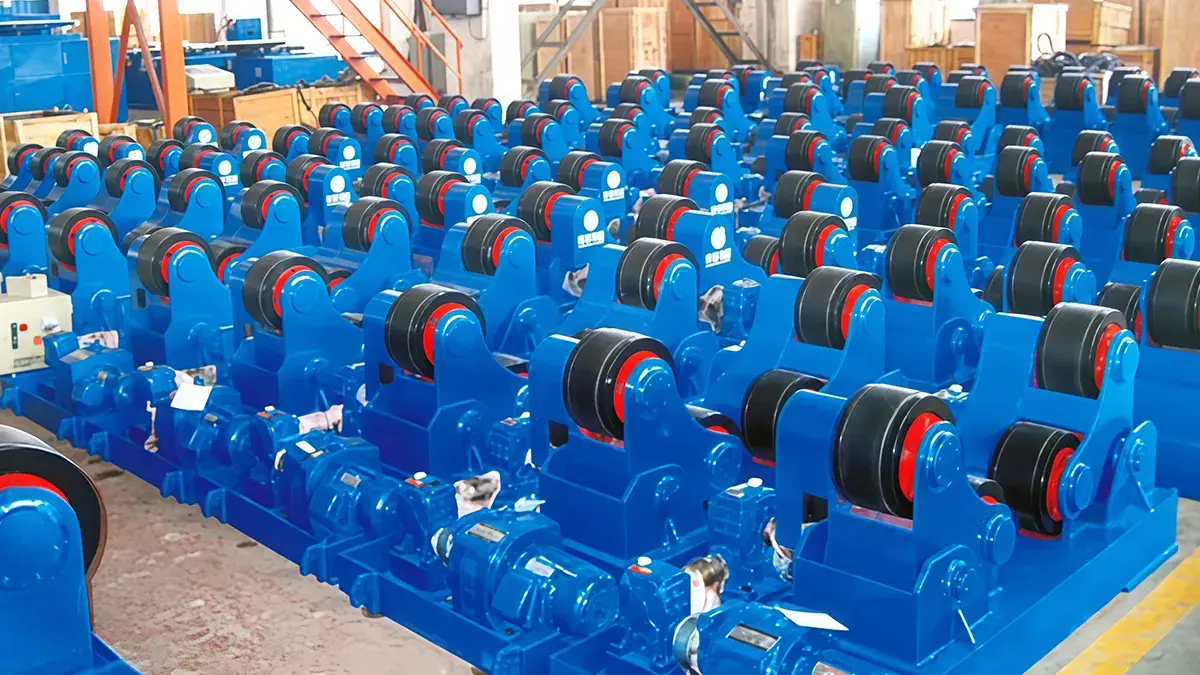

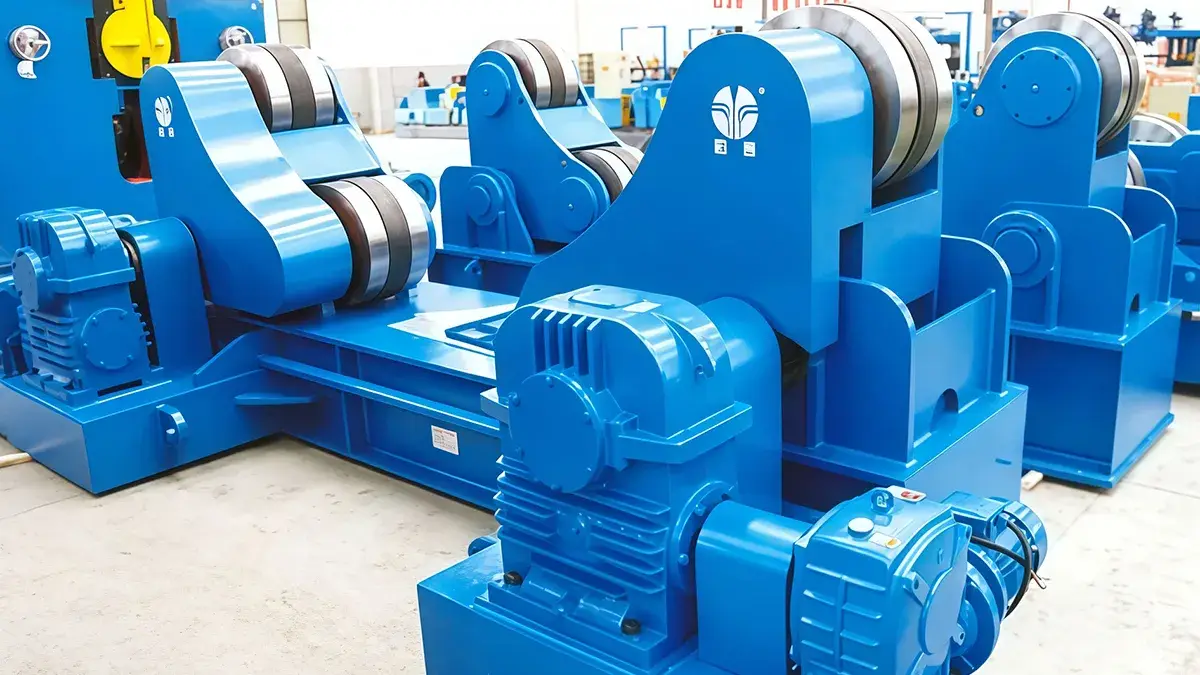

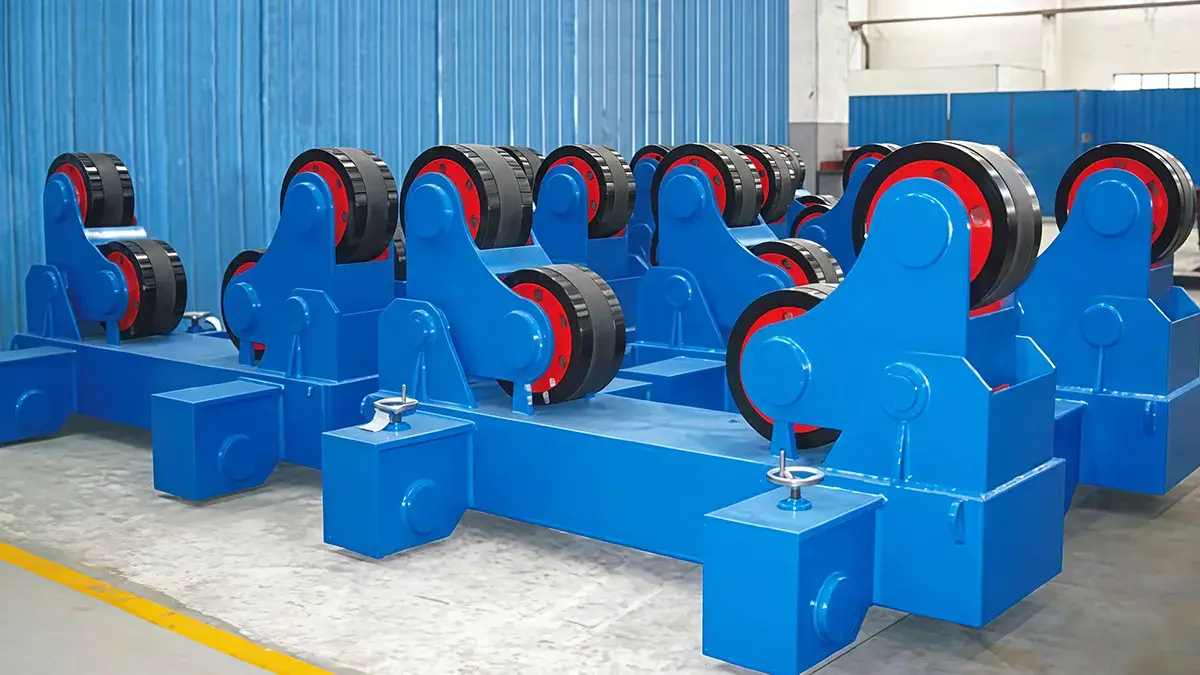

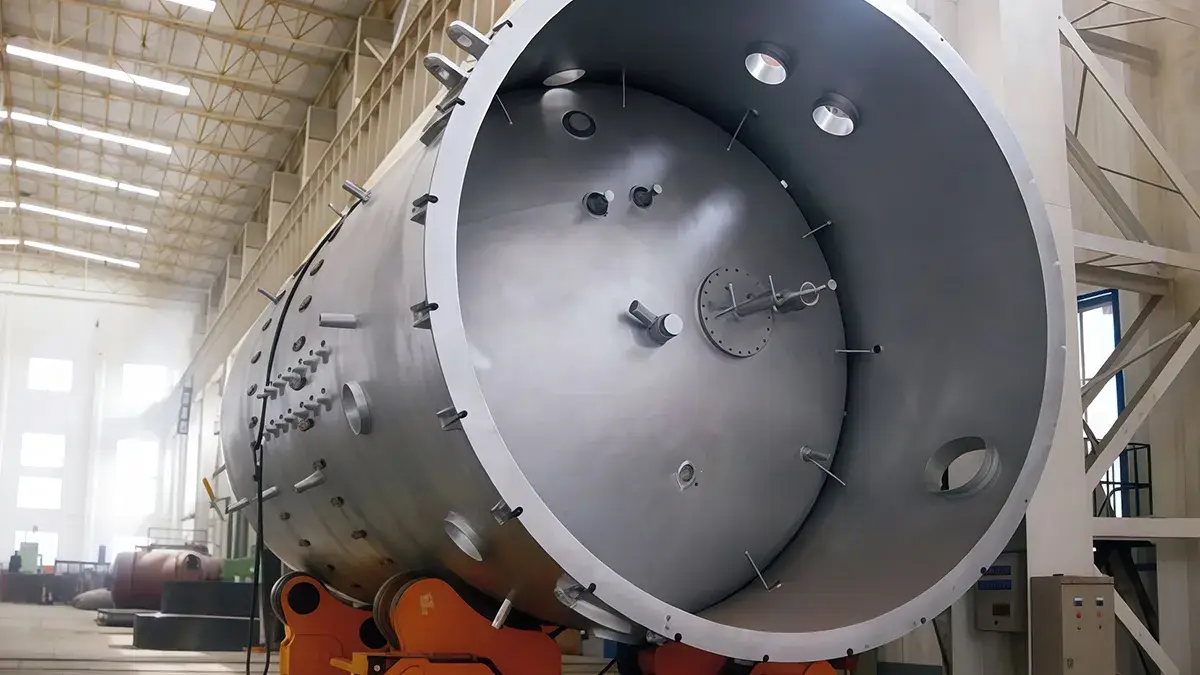

Self-aligning turning rolls are available in different styles, self-adjusting, manually adjustable, mobile, and anti-slip designs, and can have steel, rubber, or polyurethane rollers. They hold and rotate cylindrical workpieces during welding, grinding, lining, or assembly, keeping the piece stable and centered as it moves. Self-adjusting rolls automatically adapt to the size of the workpiece, while adjustable ones can be set with screws or stepped mechanisms. Self-aligning turning rolls can also be customized to fit special production needs, helping operators handle the workpiece safely and efficiently.

Specifications
Model HGZ5 HGZ10 HGZ20 HGZ40 HGZ60 HGZ80 HGZ100 HGZ150 HGZ200
Max. Load (t) 5 10 20 40 60 80 100 150 200
Working Range (mm) ⌀250-2300 ⌀320-2800 ⌀500-3500 ⌀600-4200 ⌀700-5000 ⌀850-5500 ⌀1000-6000 ⌀1200-6500 ⌀1500-8000
Roller Diameter×Width (mm) Rubber roller ⌀250×100 ⌀300×120 ⌀350×120 ⌀400×120 ⌀450×120 ⌀500×120 ⌀500×120 ⌀550×120 ⌀550×120
Metal roller ⌀244×20 ⌀294×25 ⌀344×30 ⌀394×40 ⌀444×50 ⌀494×60 ⌀494×80 ⌀540×100 ⌀540×100
Motor Power (kW) 0.75 1.1 1.5 3 4 2.2×2 2.2×2 5.5 7.5
Roller Linear Speed (m/h) 6–60 m/h, VFD (Variable Frequency Drive, stepless adjustment)
