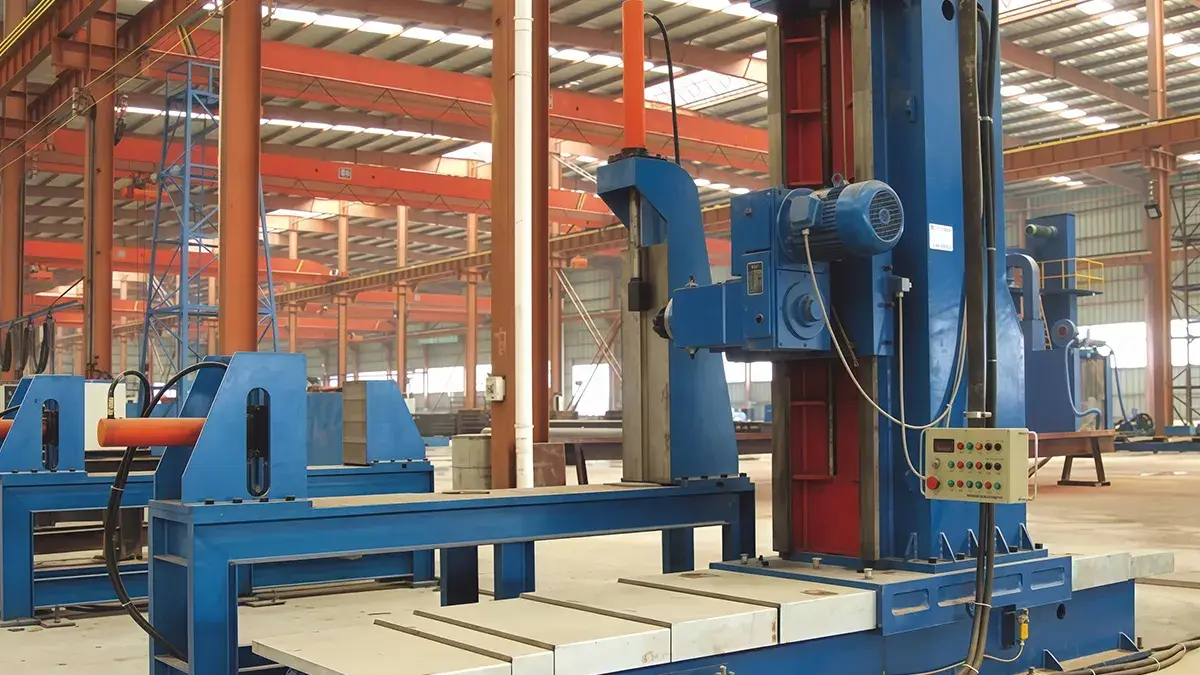

End Face Milling Machine for Steel Beams
End face milling machine for steel beams is specifically designed for the end-face milling of box columns and H-beams. The milling head is adjustable from 0° to 45° to facilitate precision beveling on the beam ends.
Specifications
Model
DX1215 DX1520 DX1520 (CNC) DX2030 (CNC)
Suitable Workpiece Height (mm)
1200
1500
1500
2000
Suitable Workpiece Width(mm)
1500
2000
2000
3000
Milling Head Power (kW)
5.5
5.5
5.5
5.5
Vertical Milling Speed (mm/min)
55-500
55-500
50-500
150-650
Horizontal Milling Speed (mm/min)
50-440
50-440
50-500
150-800
Milling Head Adjustable Angle
0-45
0-45
0-45
0-45
Established in 1985, Yangtong is a manufacturer specializing in structural steel fabrication equipment. With three production bases covering 95,000 m², we design and supply complete structural beam welding lines for manufacturing H beams, box beams, and bridge deck U-ribs. Our structure steel machine solutions are widely used in industries such as steel buildings, bridge construction, and heavy steel structures. Backed by decades of engineering experience and ISO-certified quality management, we deliver reliable, high-performance structural steel processing machinery that improves production efficiency and ensures consistent fabrication accuracy.
