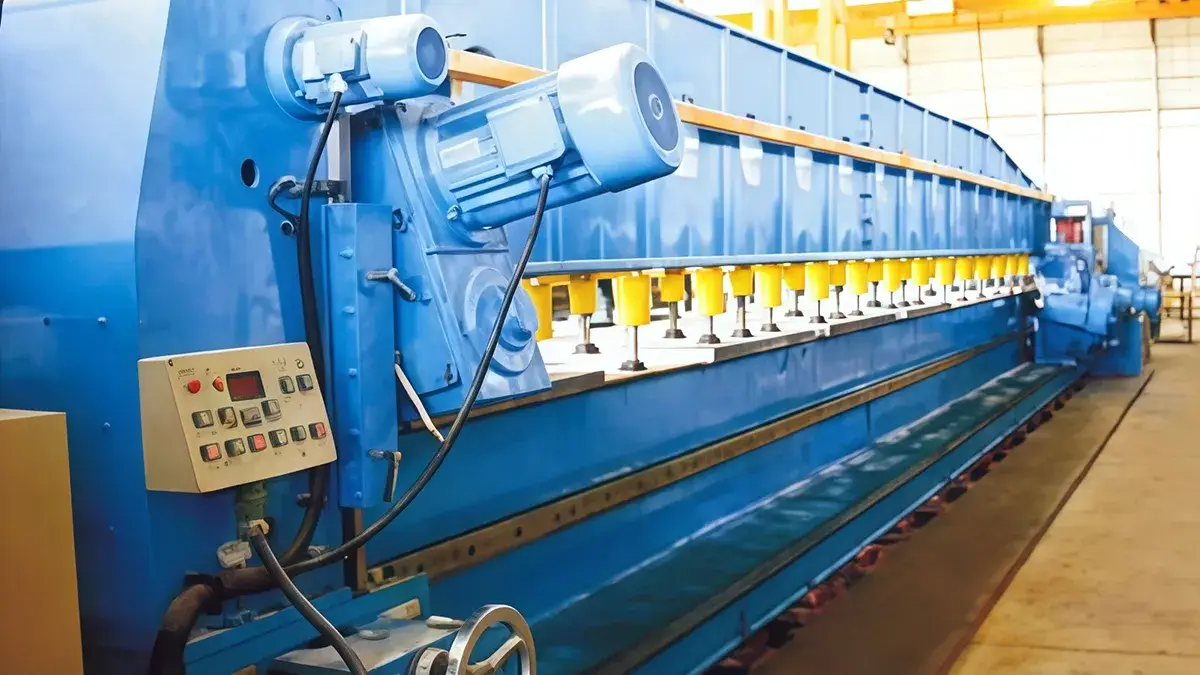

Steel Plate Edge Milling Machine

Steel Plate Edge Milling Machine

Steel plate edge milling machine is a high-efficiency milling system designed to replace traditional planing for high-precision edge preparation of steel plates. This steel plate milling machine serves as a highly efficient alternative to traditional edge planers for processing plate bevels prior to welding. Compared to planers, it offers lower investment costs, reduced energy consumption, and higher surface finish precision. Customers can choose between single or dual milling units, as well as standard or custom-shaped cutter heads.

Specifications
Model XBJ6 XBJ9 XBJ12 XBJ15 XBJ18
Suitable Plate Length (m) 6 9 12 15 18
Distance Between Clamp Foot and Bed (mm) 80
Plate Thickness (mm) 6-50
Milling Angle (°) 0-45 (adjustable)
Milling Head Model 1TX32
Milling Head Power & Spindle Speed 5.5KW,1440r/min
Spindle Speed (rpm) 125-630
Milling Speed (m/min) 0.13-1
Rapid Traverse Speed (m/min) 3.5
Hydraulic Pressure (MPa) ≤3.5
