H-Beam Welding Machine
Watch Videos
-
LHA -
LHT -
LHC

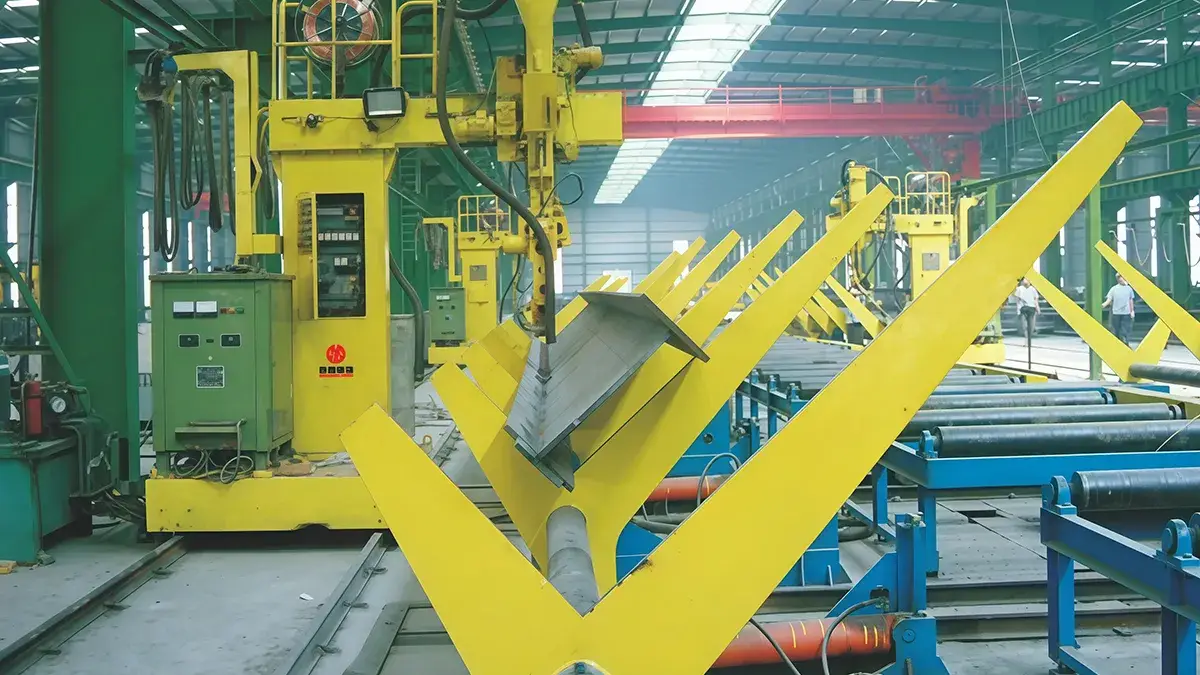

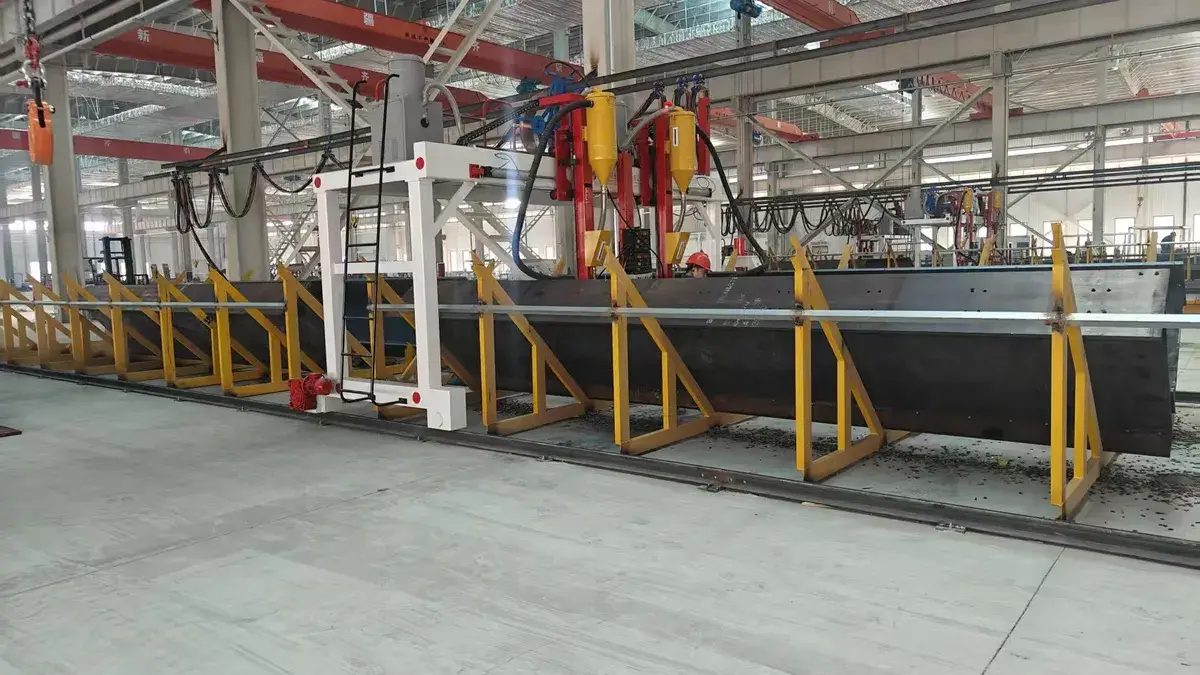

H-Beam welding machine is an automated steel beam processing machine for fillet welding of H-beams using submerged arc welding (SAW) technology in gantry or cantilever configurations.

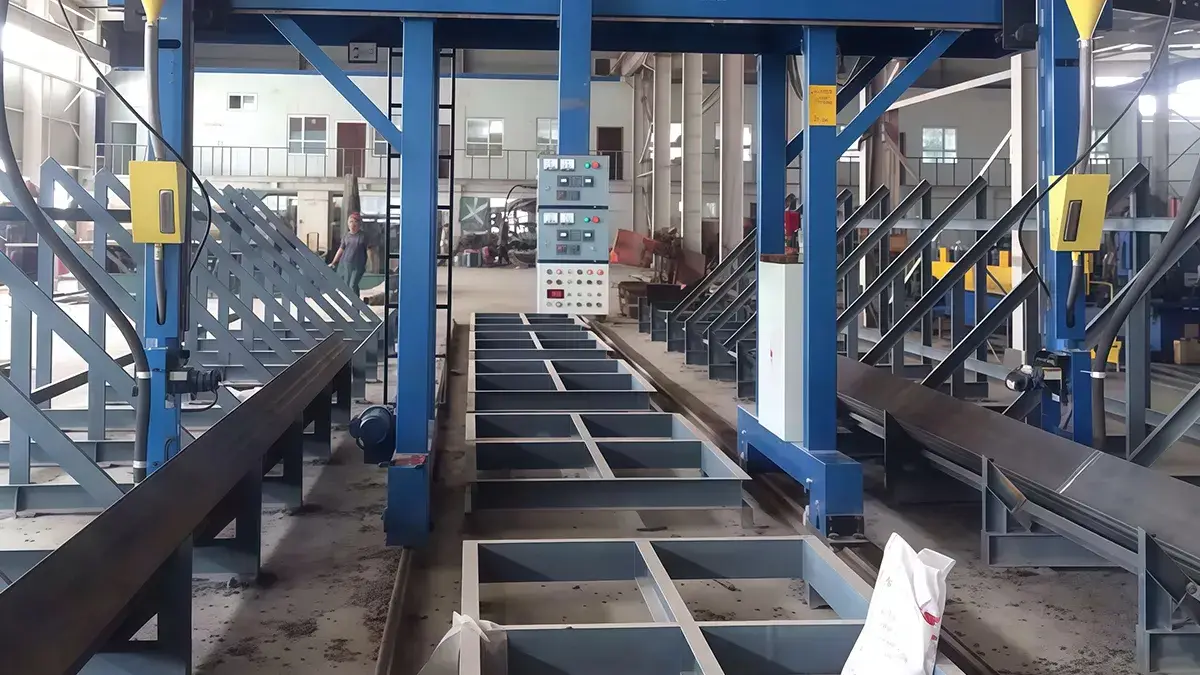

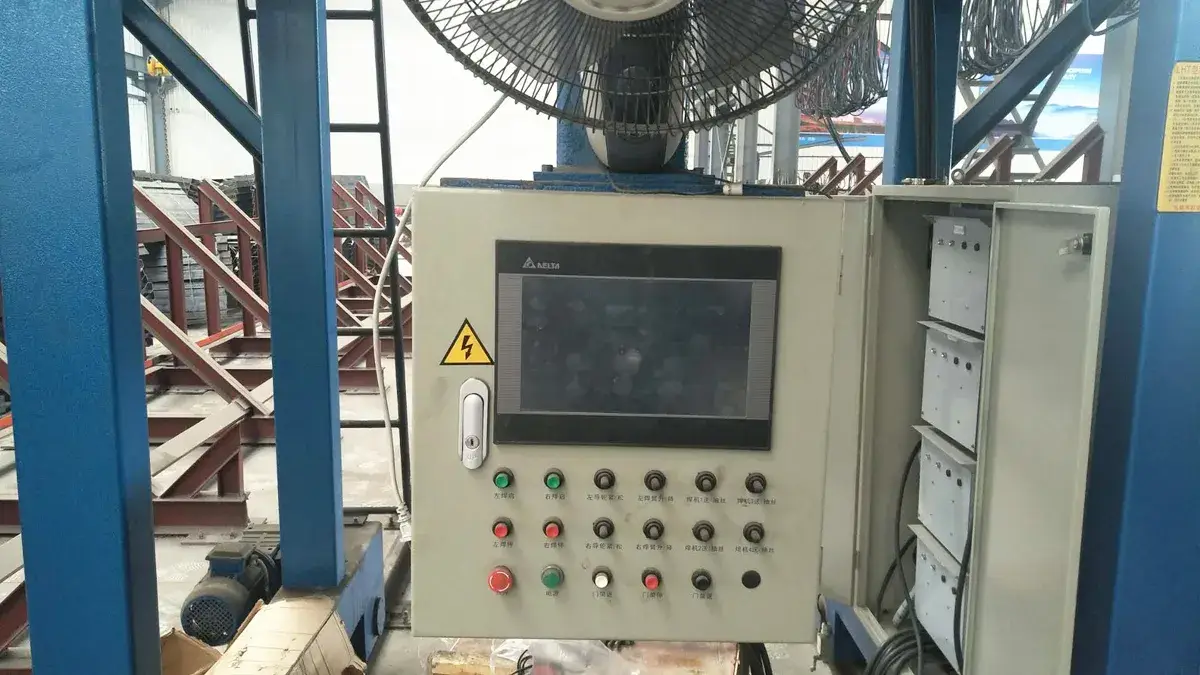

Our H-beam welding machine is available in three distinct configurations to meet various production needs: LHA Gantry Type, LHT Double Cantilever Type, and LHC Single Cantilever Type. For the LHA gantry welding machine, customers can choose between centralized or lateral control system.
Specifications
| Model | |||||
| Rail Span (mm) | 4000 | 5000 | 5500 | 1600/2000 | 1150 |
| Control System | Centralized | Centralized | Centralized | Centralized | Lateral |
| Web Height (mm) | 160-1500 | 160-2000 | 160-2200 | 160-2500 | 160-2000 |
| Flange Width (mm) | 140-800 | 140-800 | 140-800 | 140-800 | 140-800 |
| Applicable Workpiece Length (mm) | 4000-15000 | 4000-15000 | 4000-15000 | 4000-15000 | 4000-15000 |
| Welding Speed (m/min) | 0.24-2.4 | 0.24-2.4 | 0.24-2.4 | 0.24-2.4 | 0.24-2.4 |
| Machine Power (kW) | 9.3 | 9.3 | 9.3 | 9.3 | 4.35 |
Key Features
-
- Stable Operation The H-beam welding system utilizes AC variable frequency drive (VFD) control to achieve smooth, bidirectional welding, ensuring high reliability and ease of operation.
-
- Versatile Applications Equipped with a specialized arc guiding rack, the structural steel welder is capable of welding small-sized steel profiles and cruciform (cross) beams.
Machine Details
Parameter Presetting Capability

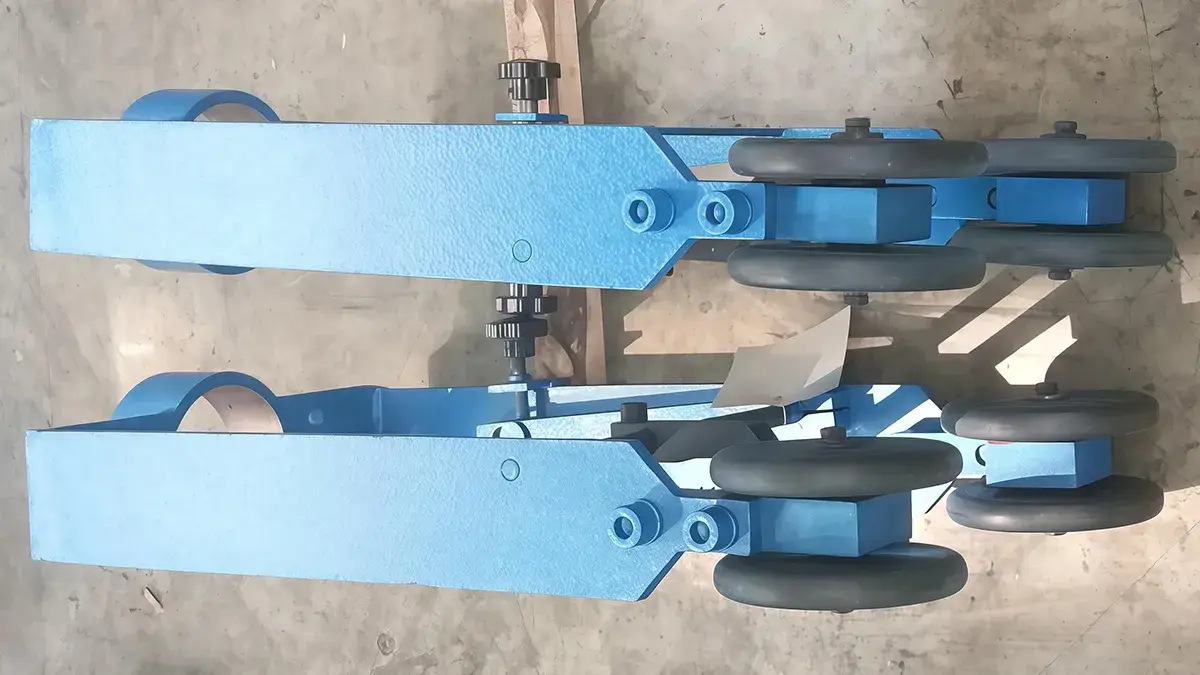

Box Beam Arc Guiding Rack

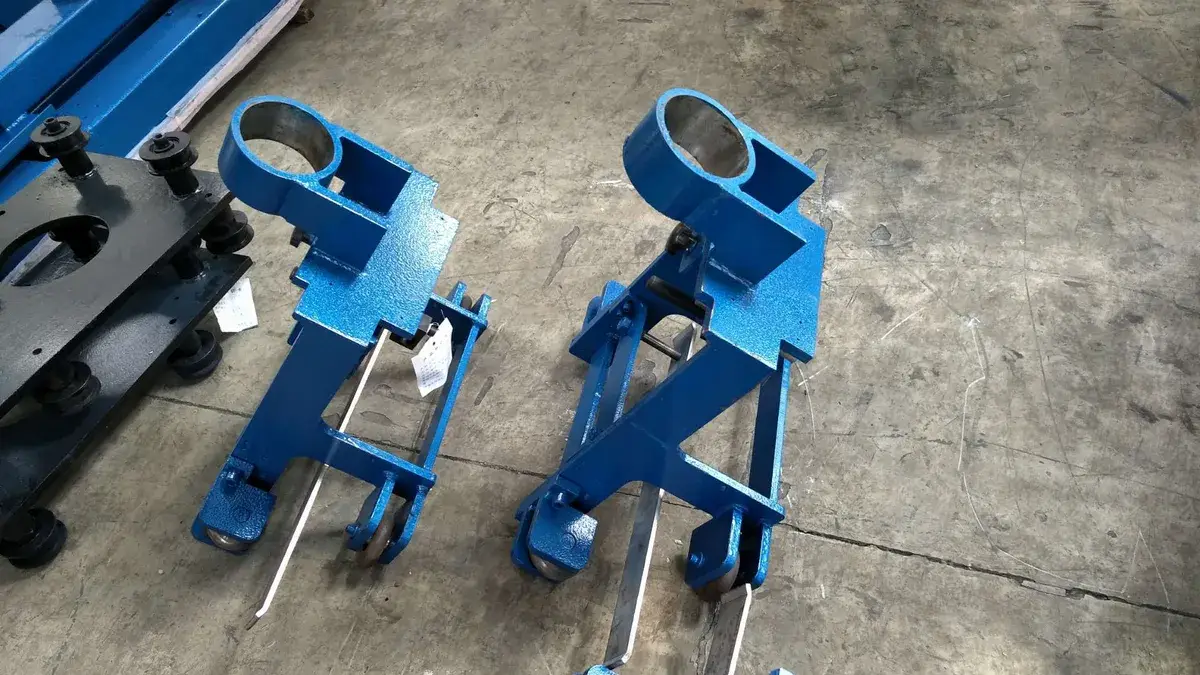

H-Beam Arc Guiding Rack
