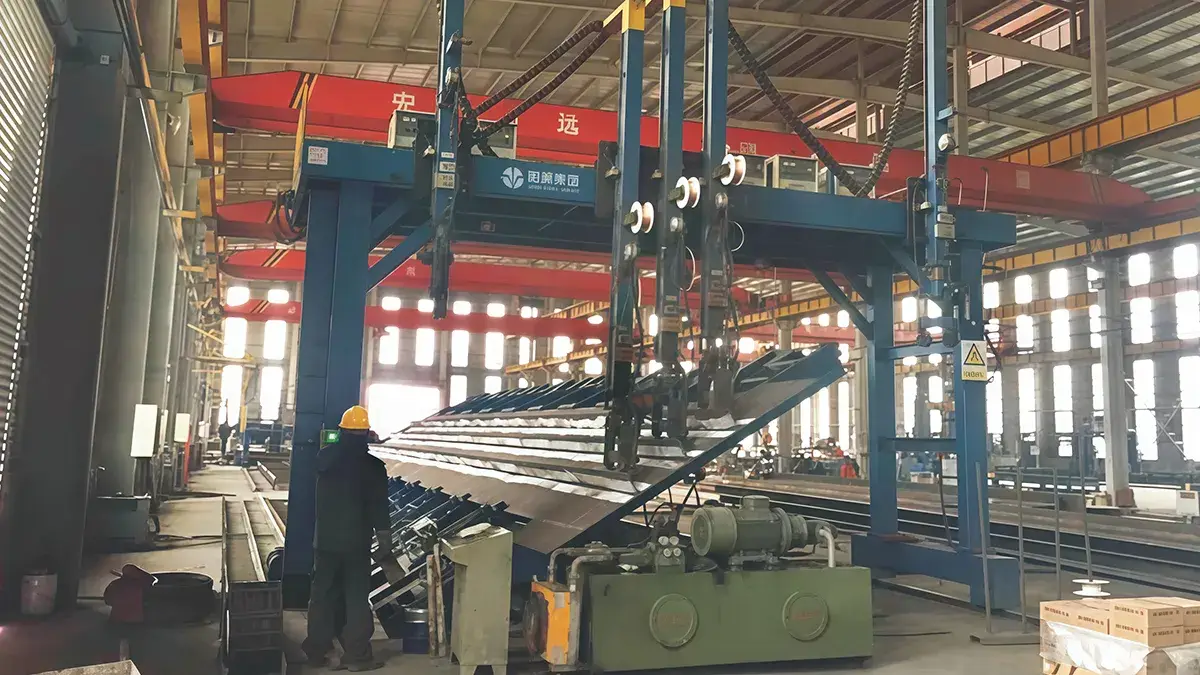

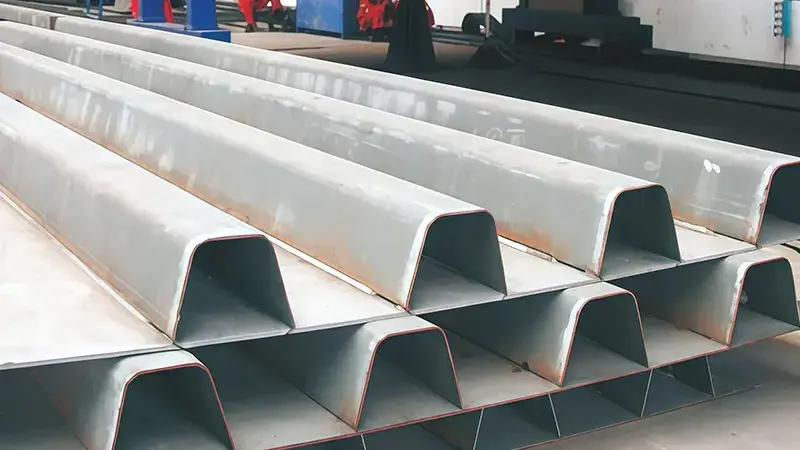

Multi-head u-rib welding machine is a high-efficiency multi-torch system designed for simultaneous fillet welding of multiple U-ribs on large structural panels. Assembled panel units are secured on a welding platform with adjustable tilt angles. The welding system utilizes a mechanical seam tracking device to ensure reliable torch alignment, while the motorized gantry travels at infinitely variable speeds via AC frequency control. This setup allows for the simultaneous welding of both sides of multiple U-ribs.

Request a Quote
Specifications
Applicable Bridge Deck Width 4000mm
Rail Gauge 6000mm
Rail Length 20000mm (38kg/m rails provided by Yangtong, rail clips and accessories provided by customer)
Max. Bridge Deck Component Length 16m
Number of Welding Heads 6 sets
Welding Travel Speed 0.25-2.5m/min (variable frequency speed control)
Rapid Travel Speed 3m/min
Welding System NBC-500RP PLUS GMAW (Gas Metal Arc Welding) Source (Aotai)
Welding Mode Semi-fillet weld position, argon shielding gas

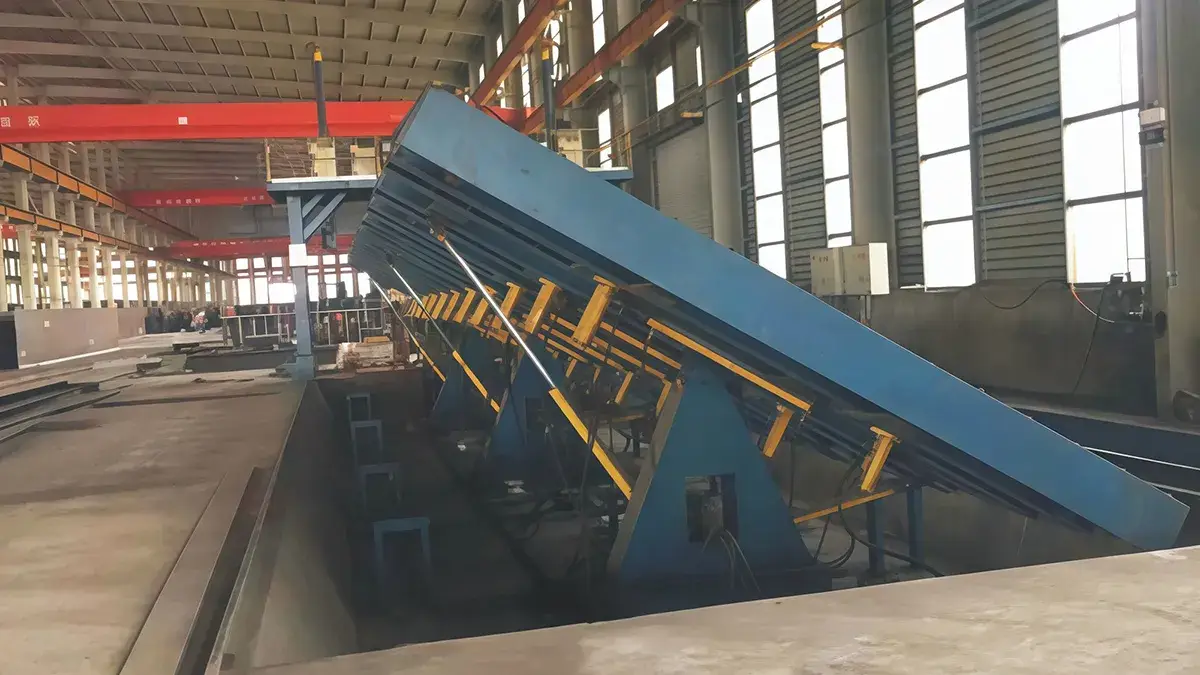

Max. Loading Capacity of Tilting Platform ≤20T
Tilting Angle of Tilting Platform ±30°
Workpiece Range Bridge Deck Width: 2000-4000mm
U-Rib Spacing: 500-800mm (for smaller spacing, intermittent welding mode is applicable)
Workpiece Length: 16000mm
U-Rib Width: 160-320mm
U-Rib Height: 260-340mm
Power Supply 3-Phase, AC 380V, 50Hz
Key Features
    • Process Flexibility The system can be configured for either MIG (GMAW) or SAW (Submerged Arc Welding) processes based on project requirements.
    • Versatile Workholding The welding platform can be equipped as either a flat worktable or a specialized anti-deformation jig (cambering frame) to control thermal distortion.
    • Automated Tracking Integrated mechanical trackers maintain consistent torch positioning along the ribs, ensuring uniform weld quality across the entire panel.
