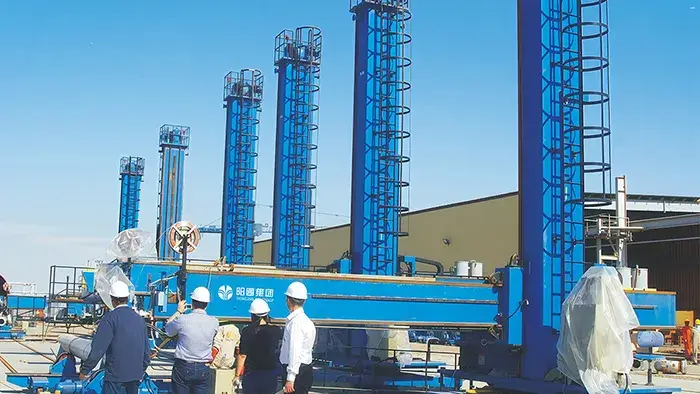

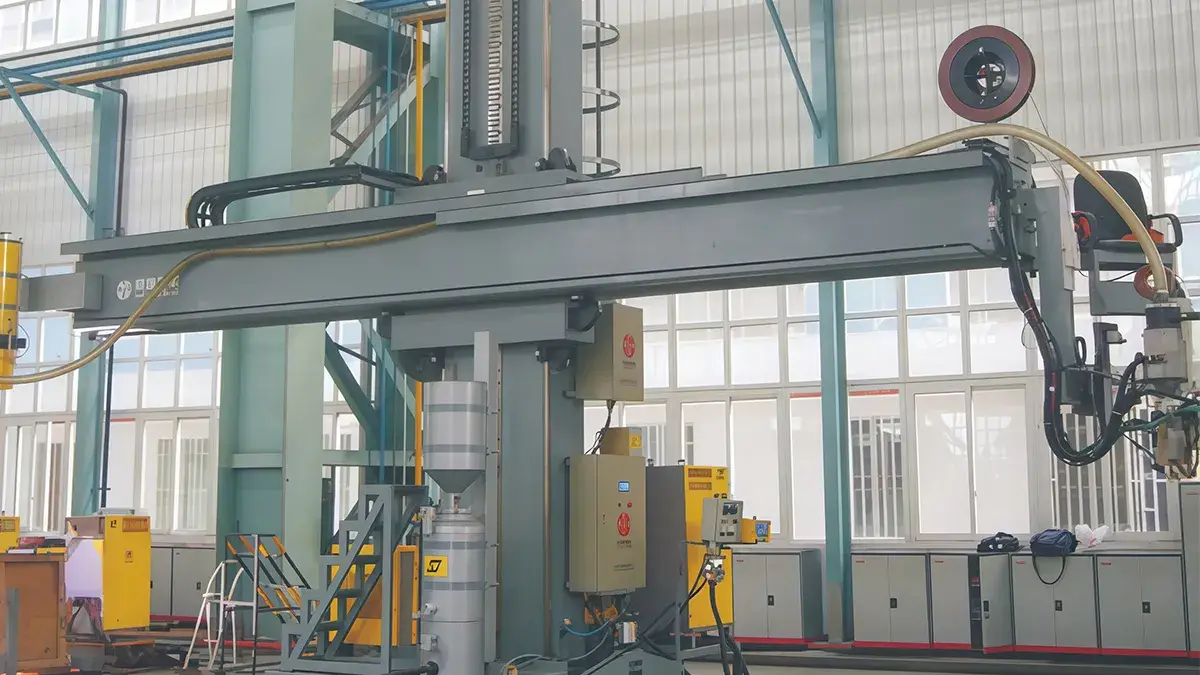

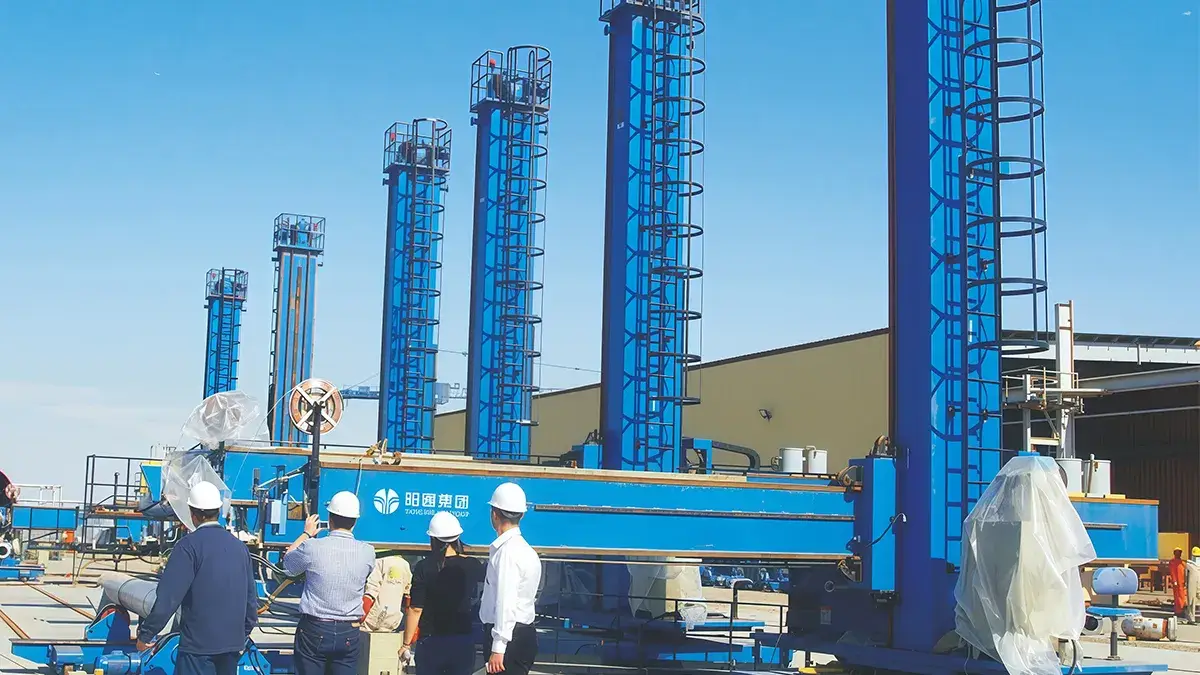

Automatic Welding Manipulator
Specifications
| Model | |
|
|
|
||||
| 2×2 | 3×3 | 4×4 | 5×5 | 6×6 | 7×7 | 6×6 | 8×8 | |
| Effective lift stroke (mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 6000 | 8000 |
| Effective boom travel (mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 6000 | 8000 |
| Lift speed (mm/min) | 1000 | 1650 | ||||||
| Boom travel speed (mm/min) | 120-1200 | 50-1000 | ||||||
| Min. distance from boom underside to rail top (mm) | 740 (moving with rotation) / 690 (stationary with rotation) | 1109 (moving with rotation) / 972 (stationary with rotation) | 1109 (moving with rotation) / 1090 (stationary with rotation) | 1226 (moving with rotation) / 1180 (stationary with rotation) | ||||
| Max. load at boom front end (kg) | 80 | 120 | 200 | 600 | 400 | |||
| Column rotation | Manual rotation | ±180°, motorized or manual | ||||||
| Trolley travel speed (mm/min) | Manual | 1700 | 2500 | 2000 | ||||
| Trolley rail gauge (mm) | 1000 | 1730 | 2000 | 2500 | ||||
* Welding manipulators can also be customized to meet specific customer requirements.
Key Features
- Automatic welding manipulators are available in light-duty, medium-duty, heavy-duty, and extra-heavy-duty types, based on the load capacity at the front end of the boom.
- Different structural configurations are available, including fixed, traveling, fixed with rotation, and traveling with rotation.
- The boom is designed for horizontal extension and vertical lifting, with controlled deflection and an anti-fall device for safer operation.
- The front end of the boom is fitted with an adjustment mechanism (cross-type) that can be controlled by remote, which can make it easier to position the welding head more accurately.
- The guide wheel shaft uses an eccentric design to reduce the gap between the rollers and the guide rail.
- Column rotation can be configured in manual or motorized form, and the locking system after rotation can be manual or pneumatic.

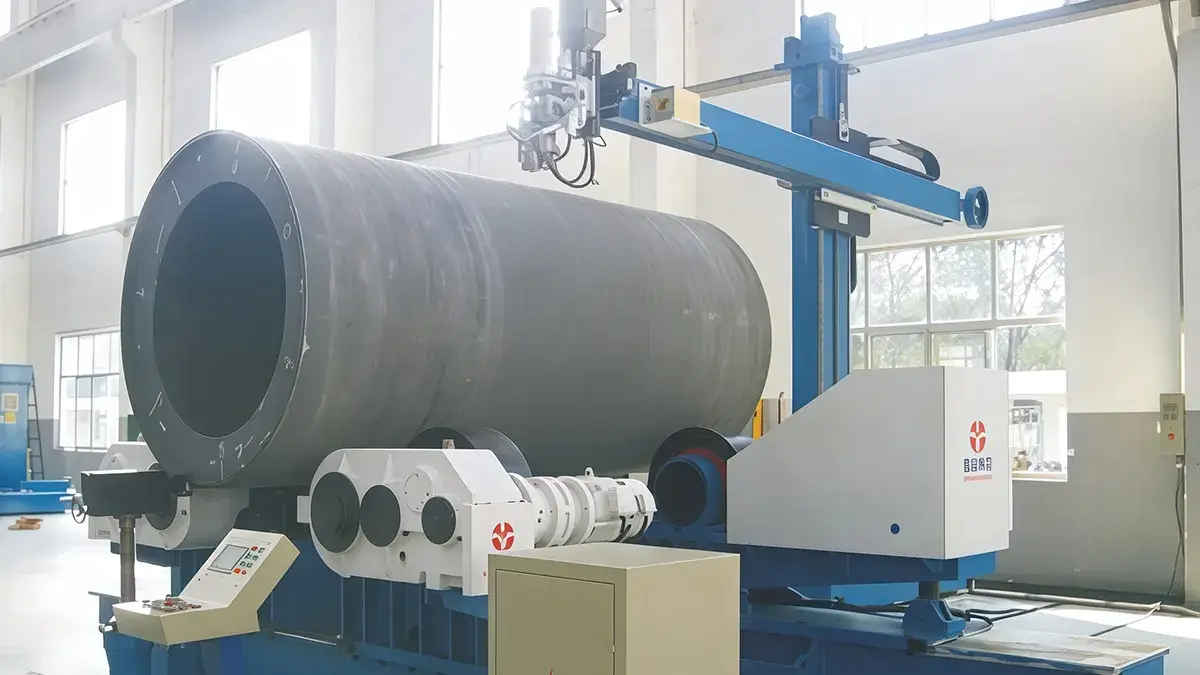

- The electrical system includes a control cabinet and remote control box, and it can also be connected with welding positioners and turning rolls to form a more complete automatic welding system.
