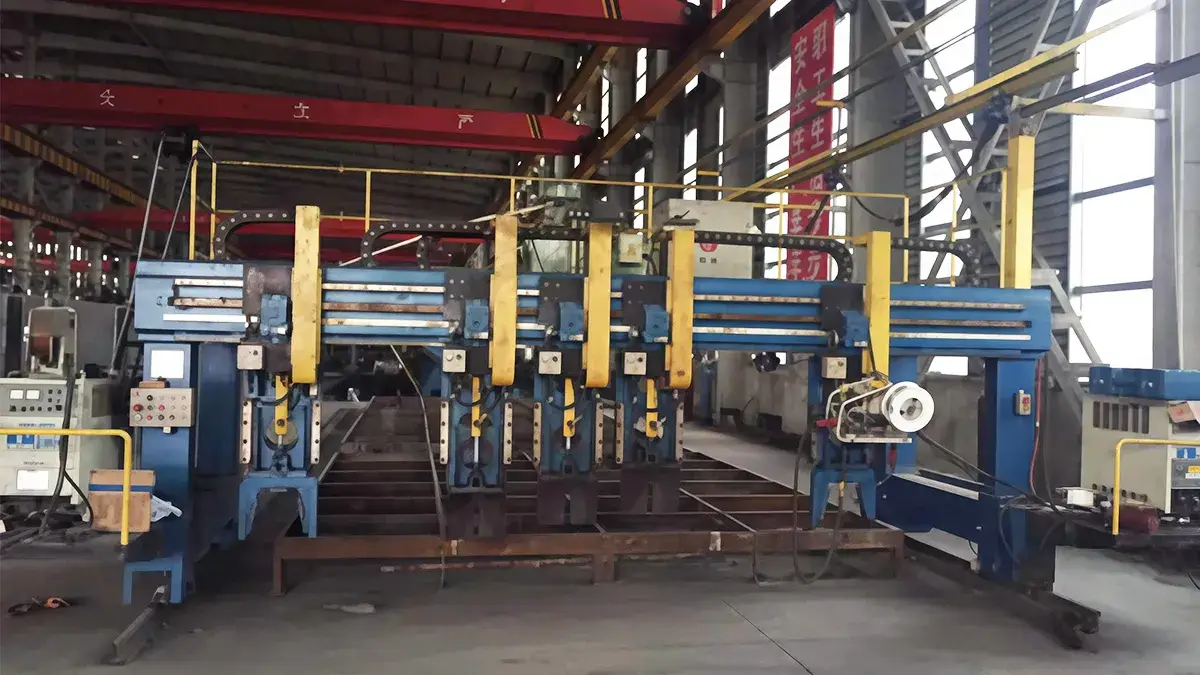

Steel U-rib assembly machine is an automated system for high-precision positioning and tack welding of U-ribs onto deck plates for bridge and large steel structures.
Precision Positioning: The base steel panel is placed on the work platform and secured against positioning stops. U-ribs are then aligned according to pre-marked layout lines on the panel.

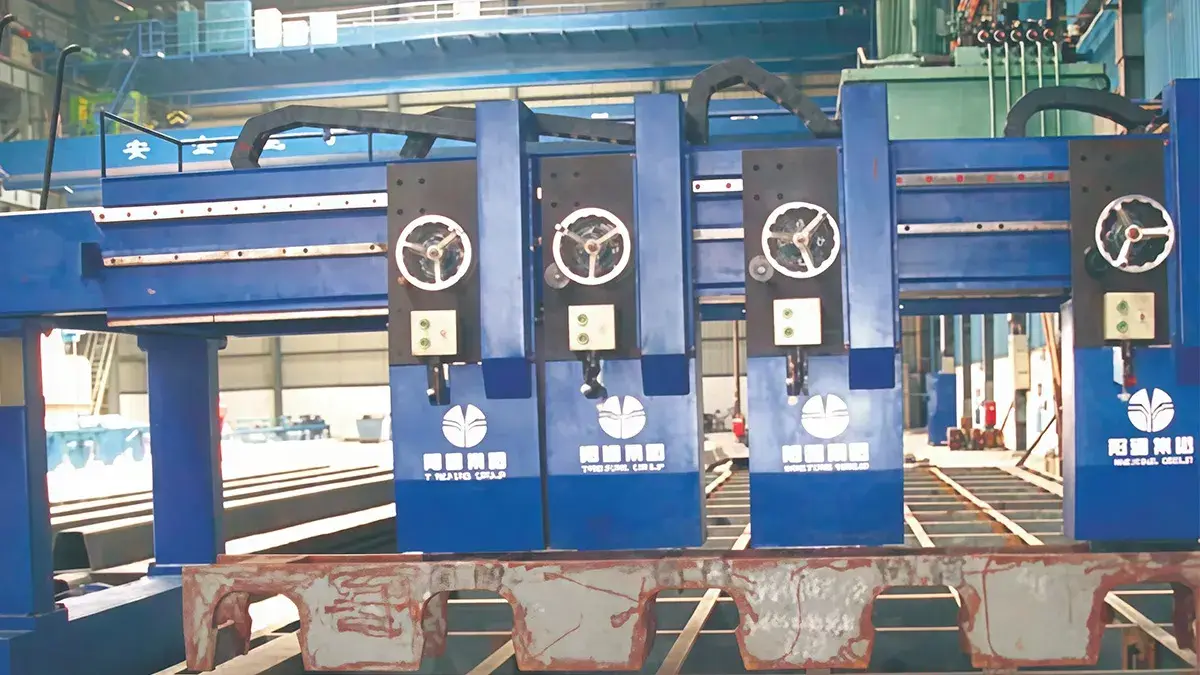

Segmented Clamping: The steel structure machine performs segmented compression and spot welding to finalize the assembly.
Clamping Options: Depending on production requirements, customers can choose between hydraulic clamping or manual screw-rod clamping systems.
