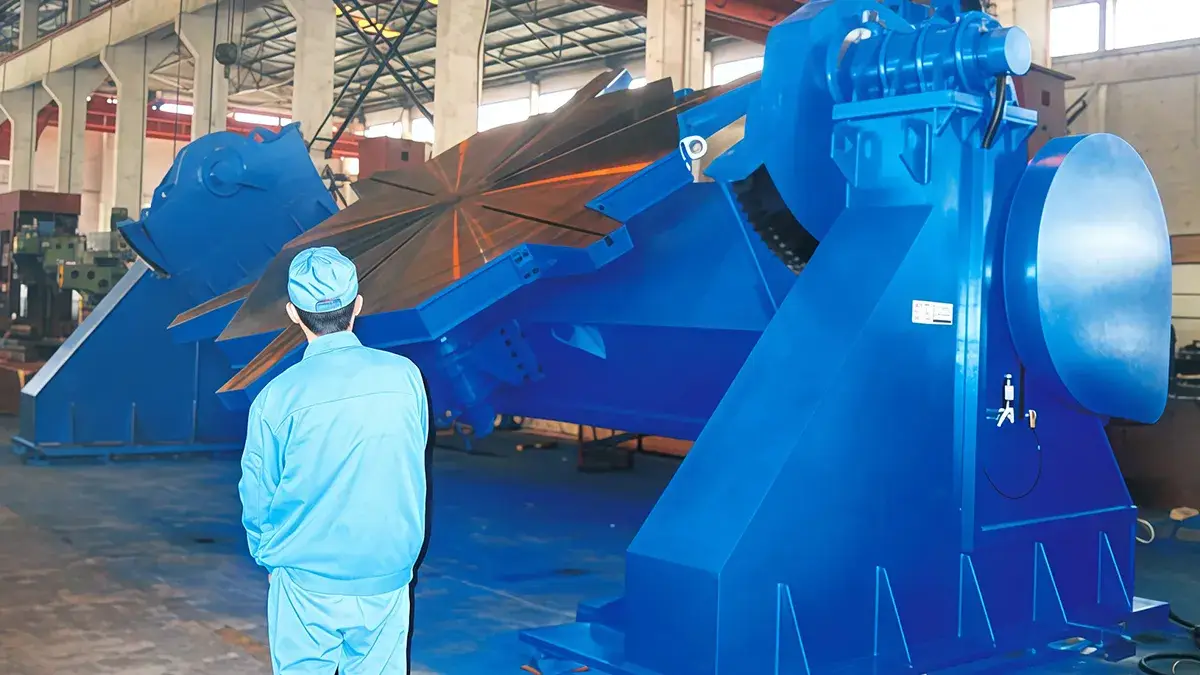

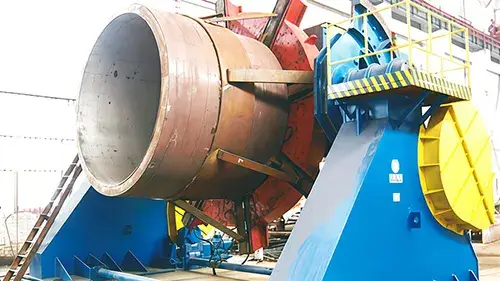

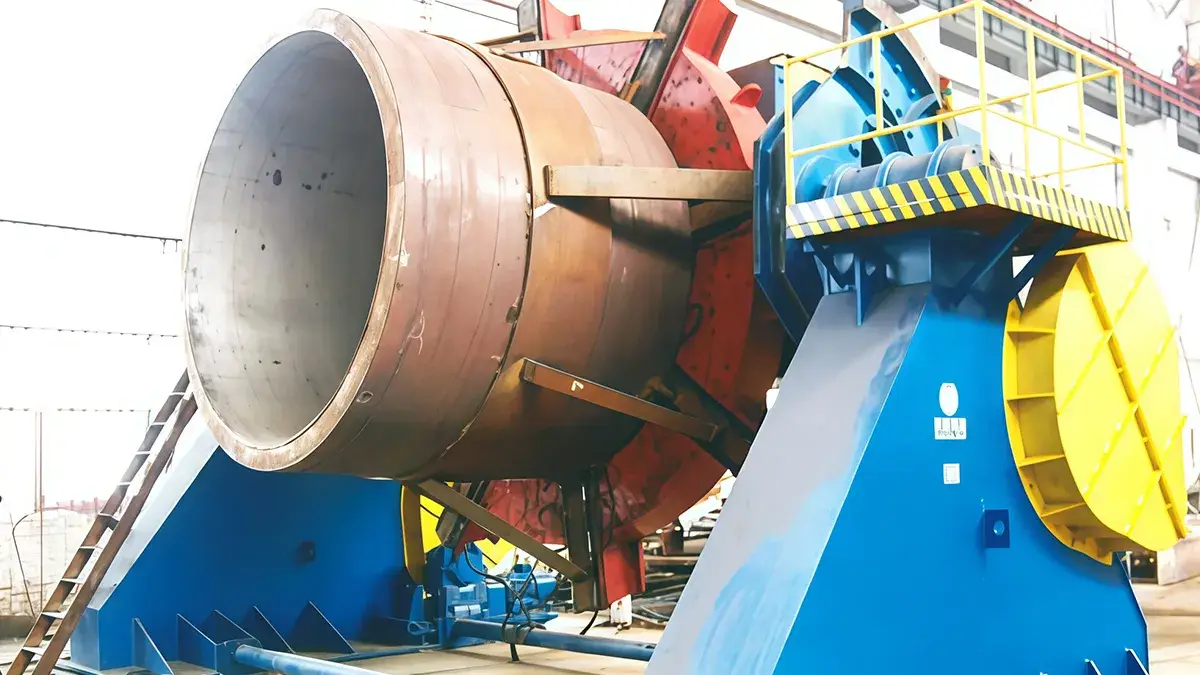

Cradle Welding Positioner
Cradle welding positioners are heavy-duty machines that support workpieces in a secure cradle, allowing them to rotate and tilt during welding or assembly. They make it easier to access different areas of the workpiece safely and efficiently, and the rotation and tilting movements are controlled to position the part exactly where it’s needed for welding.
Specifications
| Model | ||||
| Rated load (kg) | 30000 | 60000 | 100000 | 150000 |
| Rotation speed (rpm) | 0.025-0.5 | 0.025-0.5 | 0.025-0.5 | 0.025-0.5 |
| Tilting speed (rpm) | 0.1 | 0.1 | 0.1 | 0.1 |
| Worktable diameter (mm) | ⌀4000 | ⌀5000 | ⌀5000 | ⌀5000 |
| Max. eccentricity (mm) | 400 | 300 | 300 | 300 |
| Max. center of gravity distance (mm) | 1200 | 1800 | 2000 | 2000 |
| Worktable tilting angle (°) | -45～+90 | -45～+90 | -45~+90 | -45~+90 |
| Rotation motor power (kW) | 11 | 22 | 18.5×2 | 30×2 |
| Tilting motor power (kW) | 5.5×2 | 11×2 | 22×2 | 37×2 |
