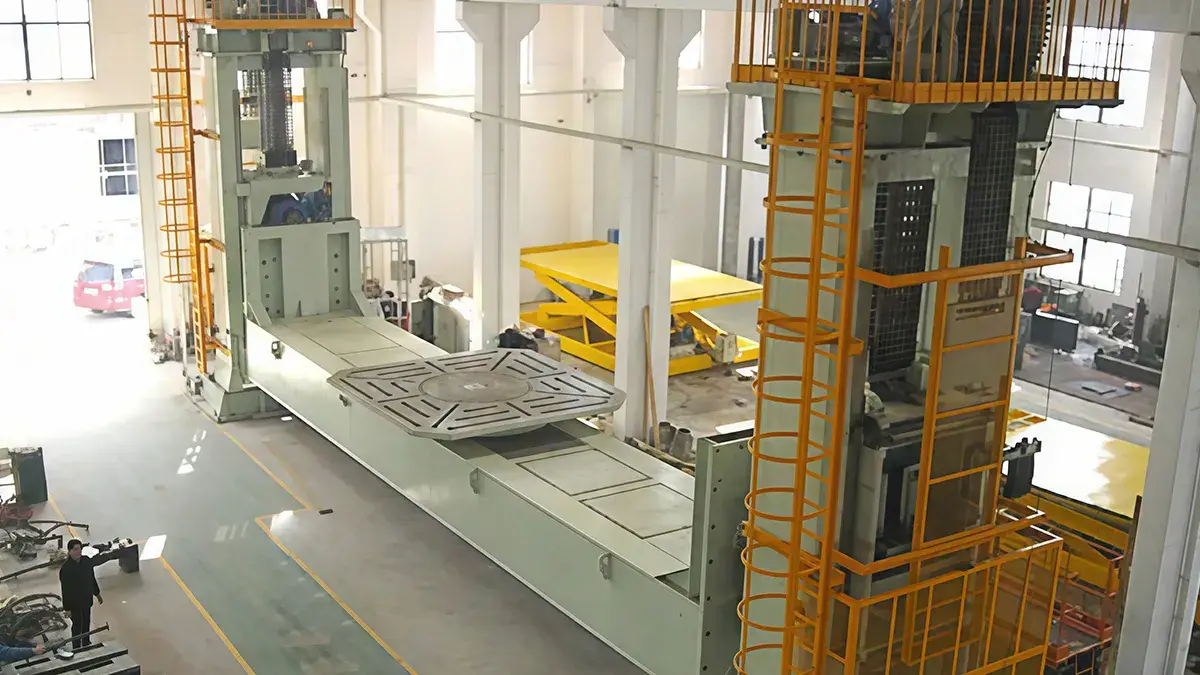

Dual Column Welding Positioner
Equipped with two sturdy columns supporting either side of the table, dual column welding positioners lift and hold large workpieces in place, allowing them to be rotated or tilted for easier welding access. They make it simpler to reach different areas of the part without manual repositioning and are ideal for handling heavy or oversized components in fabrication workshops.
Specifications
| Model | |||||
| Rated load (kg) | 10000 | 20000 | 30000 | 50000 | 80000 |
| Tilting speed (mm/min) | 1 | 1 | 0.5 | 0.5 | 0.2 |
| Tilted workpiece center distance (mm) | 300 | 300 | 450 | 450 | 600 |
| Rotation speed (rpm) | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.02-0.2 |
| Rotation eccentricity (mm) | 200 | 200 | 200 | 200 | 200 |
| Elevation speed (mm/min) | 1000 | 1000 | 1000 | 1000 | 500 |
| Elevation stroke (mm) | 1000 | 1000 | 1500 | 1500 | 1500 |
| Center height (mm) | 2000 | 2000 | 2000 | 2000 | 2600 |
