Headstock Tailstock Welding Positioner

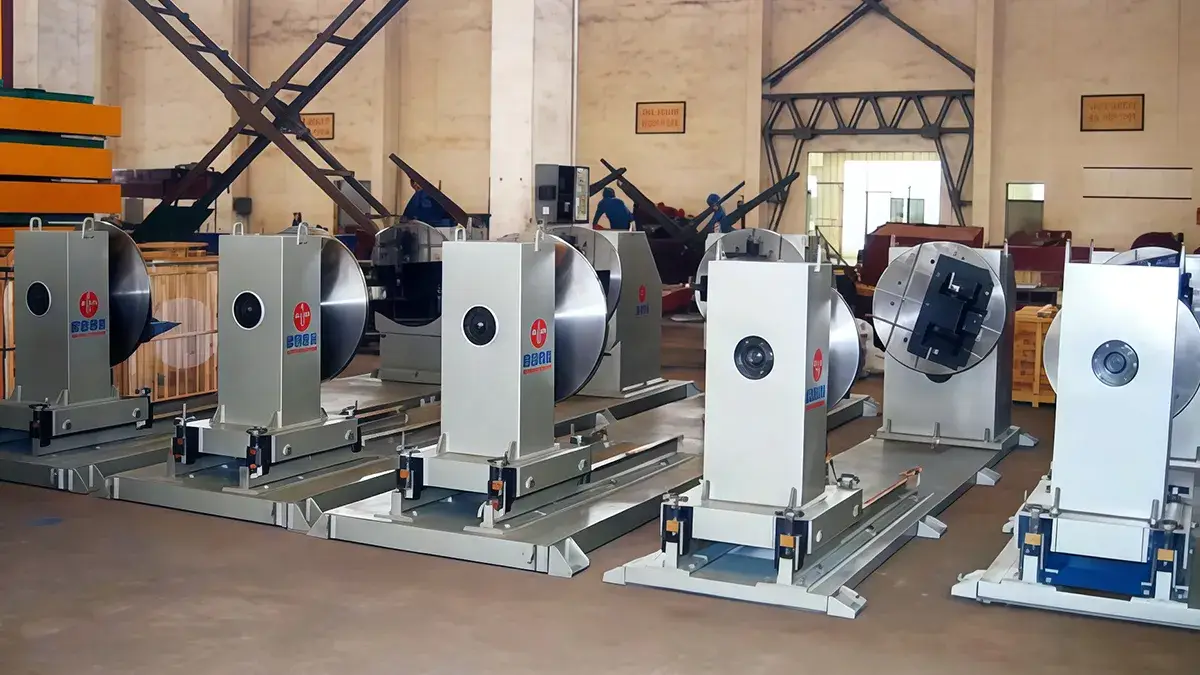

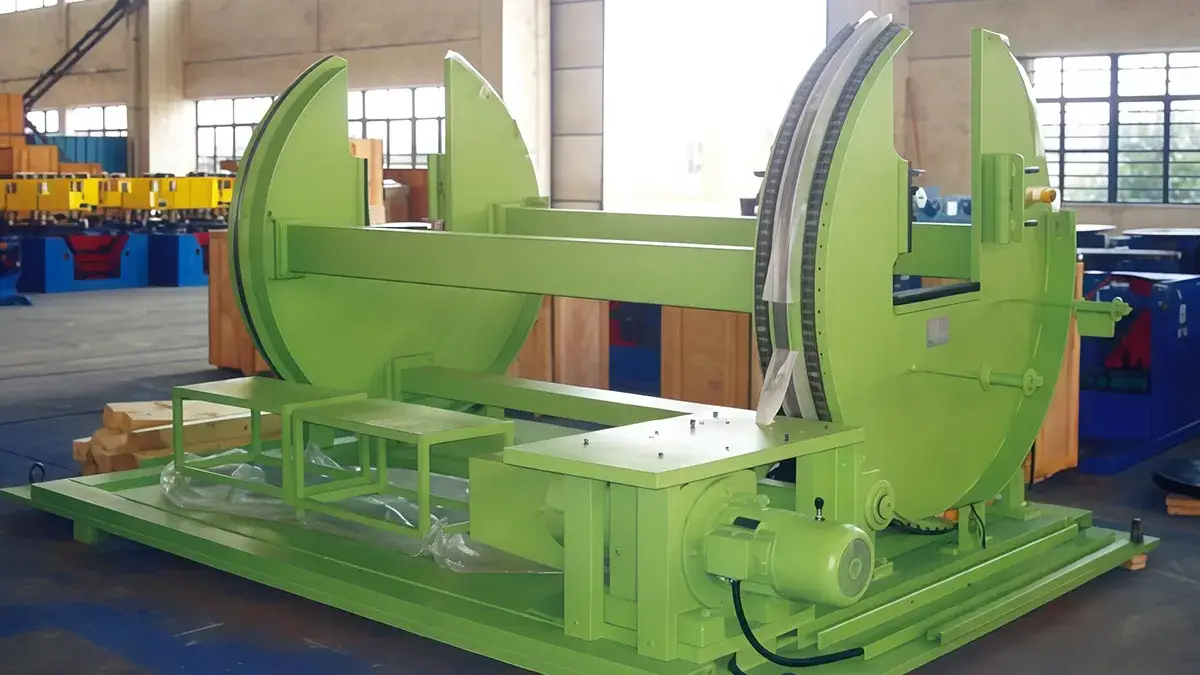

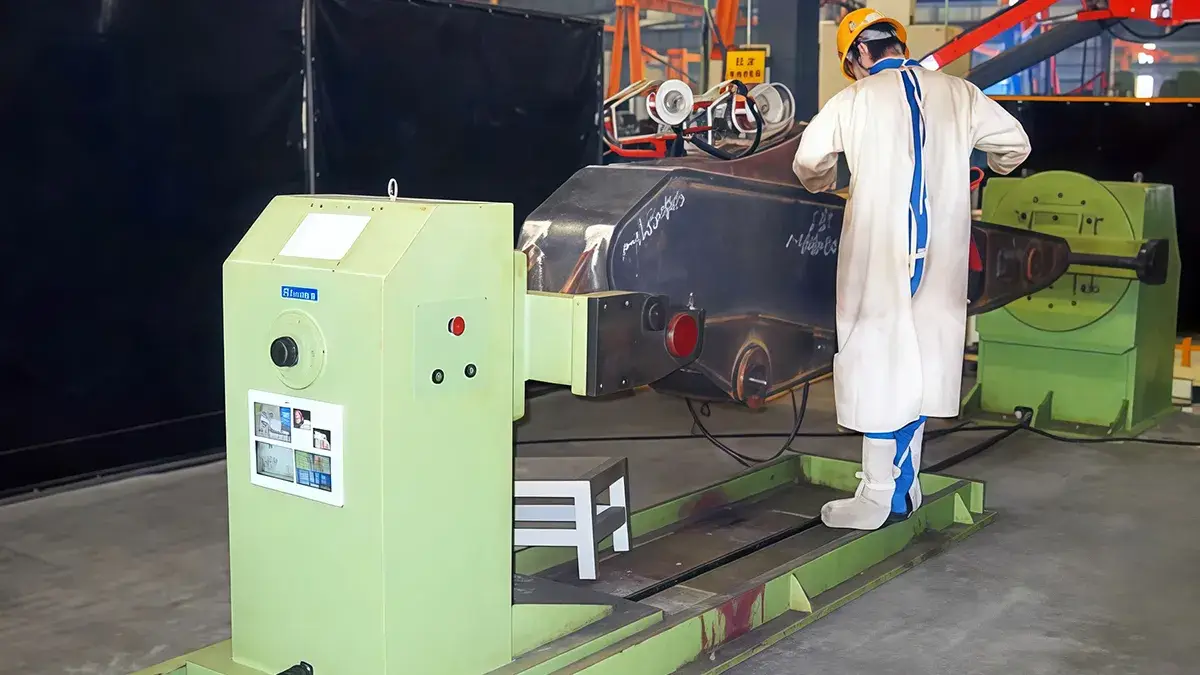

Headstock tailstock welding positioners hold long workpieces securely at both ends, allowing them to rotate and tilt as needed for welding or assembly. Holding the workpieces between the headstock and tailstock keeps them stable, giving welders easy access to the seam while enabling long components to be rotated and positioned precisely for welding or assembly.
Specifications
Model
THB10 THB20 THB30 THB50 THB100 THB200 THB300 THB500 THB1000
Rated load (kg)
1000
2000
3000
5000
10000
20000
30000
50000
100000
Rotational speed (rpm)
1.5
1.5
1.5
1.5
1
1
1
0.5
0.5
Speed control method
Constant speed / 10× variable speed
Max. eccentricity (mm)
200
200
200
200
150
150
150
100
100
Worktable diameter (mm)
800
800
800
800
1000
1000
1000
1500
1500
Rotational center height (mm)
800
800
800
800
1000
1000
1000
1200
1200
Established in 1985, Yangtong is a manufacturer specializing in structural steel fabrication equipment. With three production bases covering 95,000 m², we design and supply complete structural beam welding lines for manufacturing H beams, box beams, and bridge deck U-ribs. Our structure steel machine solutions are widely used in industries such as steel buildings, bridge construction, and heavy steel structures. Backed by decades of engineering experience and ISO-certified quality management, we deliver reliable, high-performance structural steel processing machinery that improves production efficiency and ensures consistent fabrication accuracy.
